EVE
EVE Central Control is the solution for all needs in building automation for homes, offices and industrial buildings via a remote control device.

EVE Central Control is controllable with an unlimited number of remote controls devices (max. 100 at the same time).
Features

Lighting control
RGB lighting control
Scenario management
Chrono thermostat programming
Temperature management

Motorized devices management
Dedicated plugs
Events management

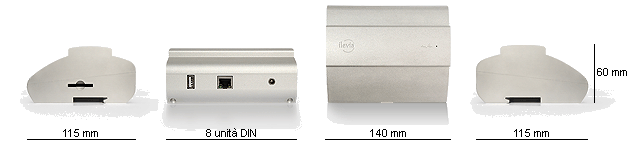

EVE dimentions
Size and weight
Height
Width
Depth
Weight		 115 mm
140 mm
60 mm
1,0 Kg
Power
DC Input
Absorption
(as power
electricity
consumption)		 18.0 - 36.0V
(24V) 200mA
Compatibility
Home automation systems KNX
Home automation systems VIMAR
Home automation systems BTICINO (2011)
Systems made by ModBUS TCP (2011)
iPhone, iPhone 3G, iPhone 3GS, iPod Touch
Symbian OS
Windows Mobile / CE
MAC OS X - Windows XP / VISTA
Eve Controller
Quality system certifications
RoHS
CE
Ports
Top side
Power Plug
Network Connection 10/100/1000

Right Side
SD card for backup system
Environmental requirements
Input Voltage: DC 18V~36V
Temperature range: 5 a 55° C
Relative humidity: from 5% to 95% without condensation
Basic equipment
Eve
User Guide in USB card
Technical manual in USB card
EVE Manager management software
Wired power connector
Download
261 Kb
features
Download
4,73 Mb
EVE 3D


Specifications
