color-infoColor Info


It shows the On / Off switch status using colored icons.

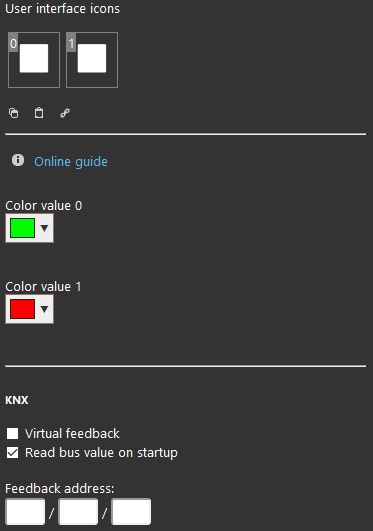

COMPONENT’S PROPERTIES

Color:

When the value is 0: choose the icon color when the value is 0 (left click on the box);
When the value is 1: choose the icon color when the value is 1 (left click on the box).

KNX

This component’s sample is made by using KNX gateway.

Please refer to “Gateways / Protocols” guide in order to get further info.

Virtual Feedback (checkbox): please refer to “KNX protocol” guide;

Read bus value on startup (checkbox): please refer to “KNX protocol” guide;

Write / Feedback address

eden-remoteEVE Remote Plus


Three different view mode possibilities: “CLASSIC”, “MODAL” and "HIDDEN". Learn more about the component's view modes.

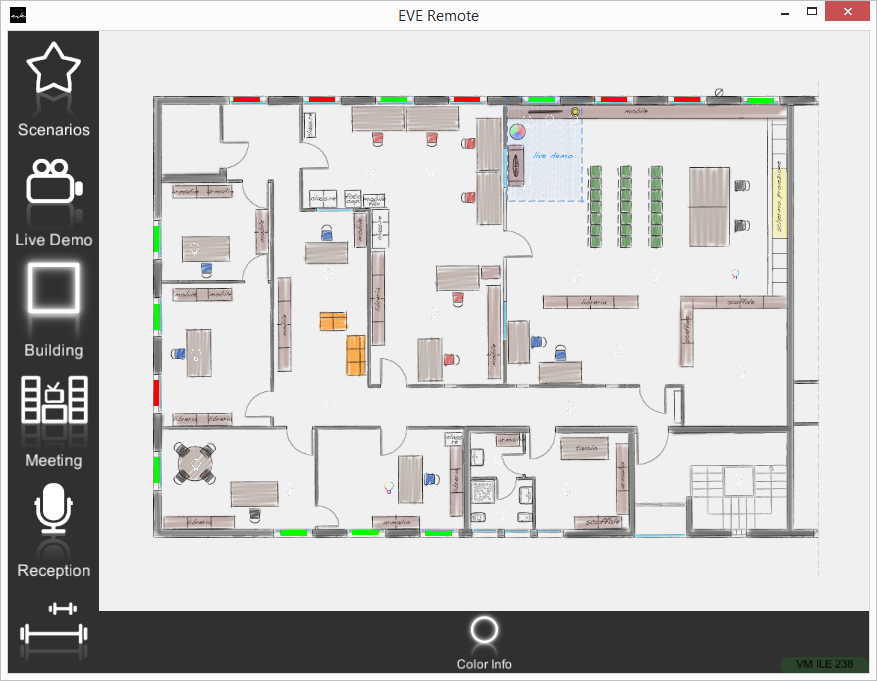

MAP VIEW MODE




This is just one of the visual result possibilities of the component on the EVE Remote (Map Style).

Icons can be customized depending on your necessities from symbol to color and dimension.

In this case, we can see the default icon layout:

Sensors ⇒ Color Info icon

2015-07-03_15-37-51  Default icon when the value is 0 (customizable icon)

2015-07-03_15-38-13  Default icon  when the value is 1 (customizable icon)

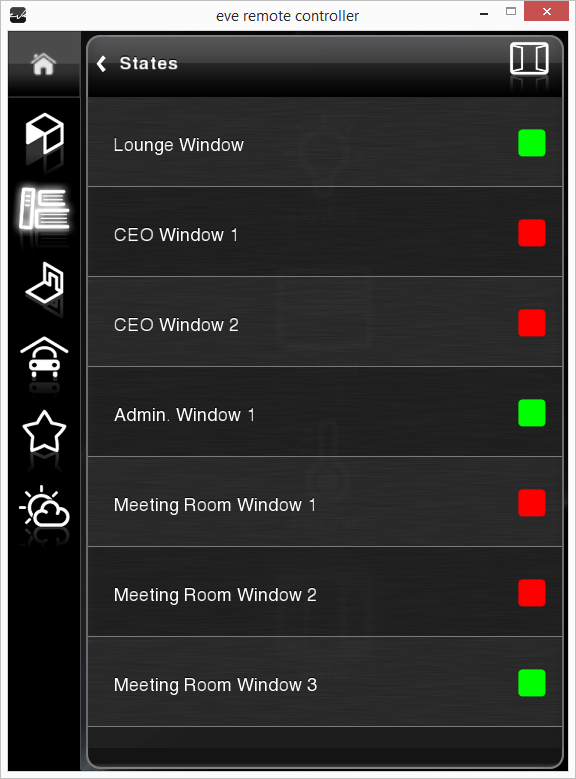

CLASSIC VIEW MODE




Here is the visual result of the component on EVE Remote (Classic Style).

Color Info is displayed as a square which takes the color of the corresponding value.

Sensors ⇒ Color Info mask

2015-07-03_15-53-24  Icon when the value is 0 (color info mask)

2015-07-03_15-53-24-1  Icon when the value is 1 (color info mask)
