drop-downDrop Down


It allows you to create a list of options selectable by the user on EVE Remote.

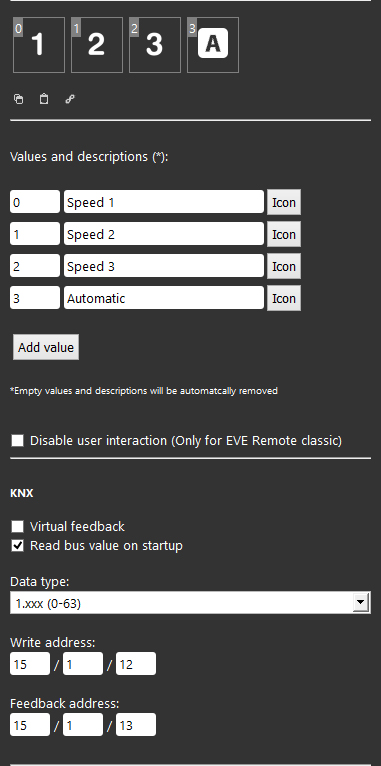

COMPONENT’S PROPERTIES

Values and descriptions:

Value (number): it defines the value of the command;

Description (text): enter the command title for the corresponding value;

Add value (button): it allows to add a new row for adding a new option;

Disable user interaction (only for EVE Remote classic) (checkbox):
it allows to disable the interaction with the component on the EVE Remote Classic App;

KNX

This component’s sample is made by using KNX gateway.

Please refer to “Gateways / Protocols” guide in order to get further info.

Virtual Feedback (checkbox): please refer to “KNX protocol” guide;

Read bus value on startup (checkbox): please refer to “KNX protocol” guide;

Data type

Write / Feedback address

eden-remoteEVE Remote Plus


Three different view mode possibilities: “CLASSIC”, “MODAL” and "HIDDEN". Learn more about the component's view modes.



MAP VIEW MODE




This is just one of the visual result possibilities of the component on the EVE Remote (Map Style).

Icons can be customized depending on your necessities from symbol to color and dimension.

In this case, we can see the default icon layout:

Menus ⇒ Drop Down icon

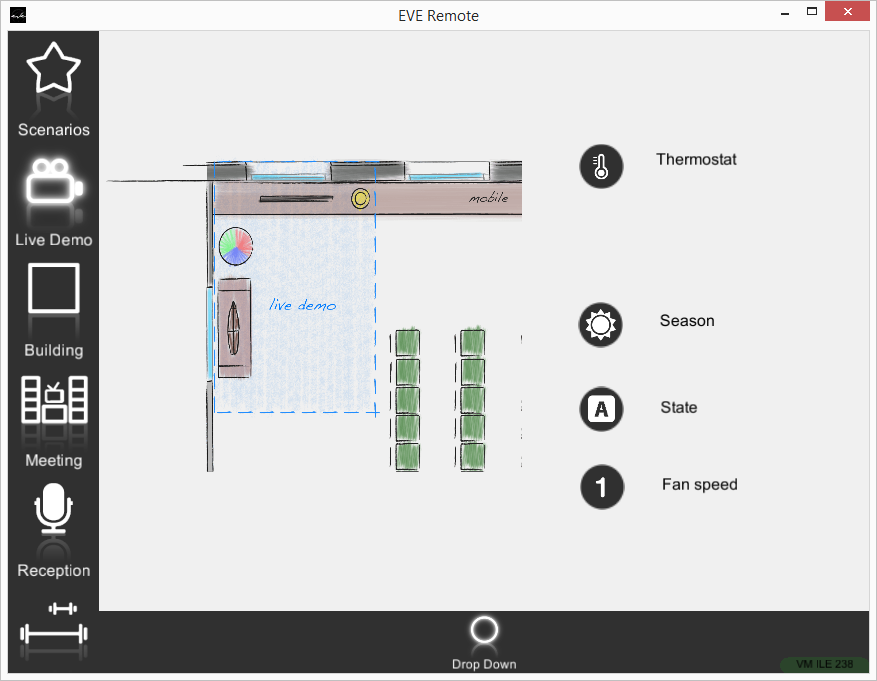

2015-07-03_10-37-33-1 The first value of the list (customizable icon)

2015-07-03_10-37-46-1  Drop down menu (drop down mask)

CLASSIC VIEW MODE




Here is the visual result of the component on EVE Remote (Classic Style).

Drop down component is displayed as a drop-down menu which opens thanks to the arrow on right.

Menus ⇒ Drop down mask

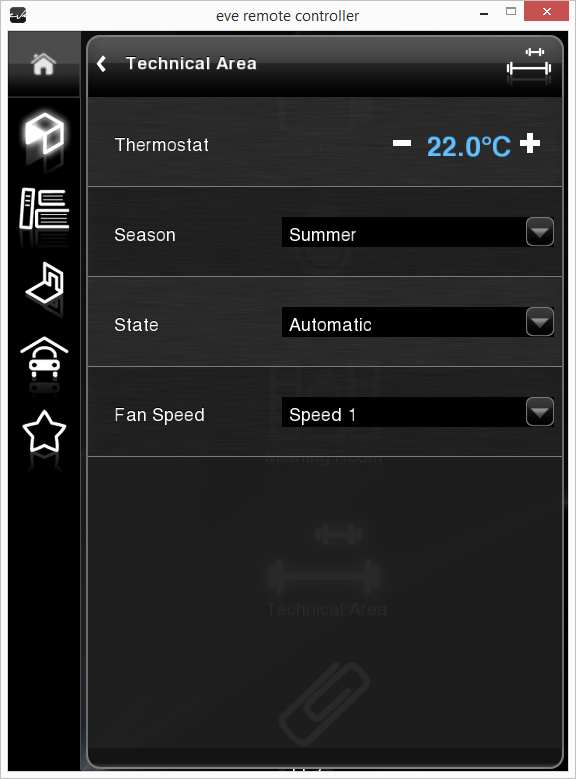

2015-07-02_17-35-47 The first value of the list (drop down mask)

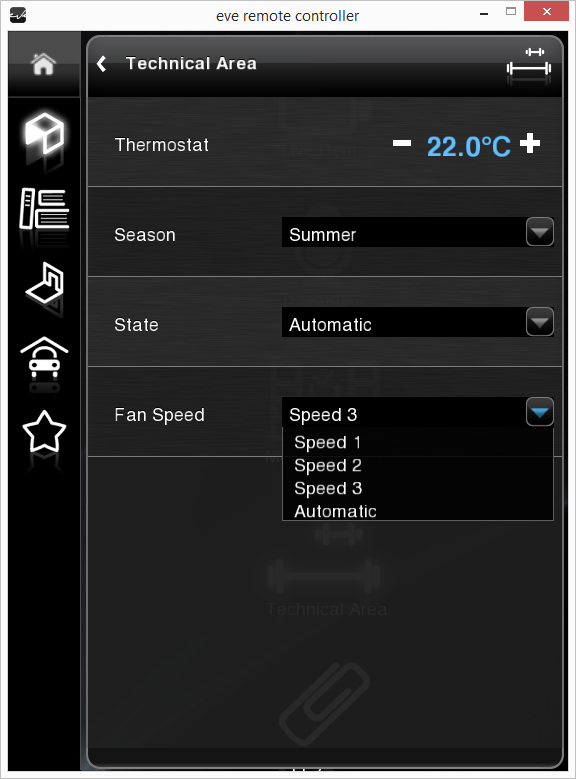

2015-07-02_17-36-45-1  Drop down menu (drop down mask)
