ip-cameraIP Camera


It allows you to add unlimited IP Cameras on the EVE Remote user interface.

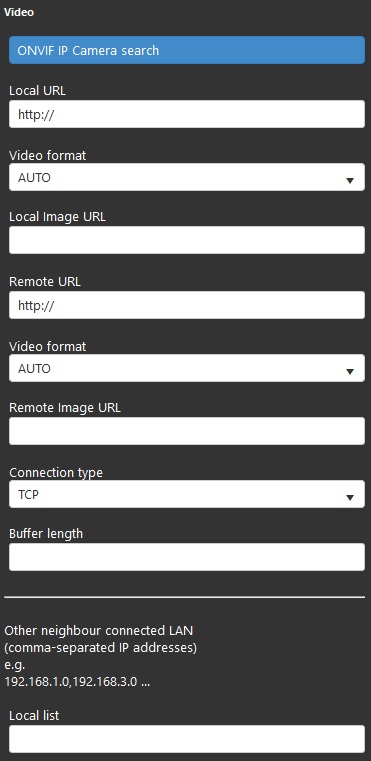

COMPONENT’S PROPERTIES

VIDEO

This component’s sample is made by using Multimedia gateway.

Please refer to “Gateways / Protocols” guide in order to get further info.

Local URL (empty field): enter the local video stream URL *;

Video format (drop down):  type of the file format (compression);

Local Image URL (empty field): enter the local image URL, allowing to see an image instead of a black screen; We recommend using this site to find out the URL for your camera.

Remote URL (empty field): enter the remote video stream URL *, allowing to see an image instead of a black screen; We recommend using this site to find out the URL for your camera.

Video format (drop down): type of the file format (compression);

Remote Image URL(empty field): enter the remote image URL,  for example, you can use this attribute to send an image to your email when someone rings the bell or view an image directly to your phone.

  • auto: EVE try to catch by itself the correct video format to use;
  • mpeg4: working only on EVE Remote Classic style;
  • mjpeg: working on both EVE Remote Apps;
  • jpeg: working on both EVE Remote Apps;

Remote Image URL (empty field): enter the remote image URL;

Connection type: TCP protocol is recommended for the best result in terms of quality and image delivery.

Buffer length:

Local list(empty field): used to distinguish the network from local to remote;

*We suggest making use of VLC software to test the URL.



SETTING UP AN RTSP STREAM

Introduction: This guide will explain how to set up a real-time streaming protocol. RTSP can be used in many software and applications and allows you to stream the view from a camera.

STEP 1

First, we need an URL to access the stream from our camera. The URL format is explained below: rtsp://username:password@IPADDRESS/your_camera_settings

1. After the two forward slashes, the first word will be set to the username you use to log into the camera followed by a colon. The second word will be the password you use to log into the camera.

2. Next, after the @ sign you will need to replace the words “IPADDRESS” with the IP you use to connect to your camera.

In case of dynamic IP using %public_ip% as follows rtsp://username:password@%public_ip%/your_camera_settings will allow you to automatically get your dynamic IP address even if it changes, allowing you to have a stable and continuous connection to your IP camera.

Note: %public_ip% will be replaced with your dynamic IP.

REMEMBER THAT EVERY CAMERA IS DIFFERENT AND HAVE ITS OWN PARAMETERS, this guide will only demonstrate how to view a streaming video from a camera inside a player like VLC, for the settings of your device please contact the manufacturer.

Note: to access your camera from outside we recommend to contact your system integrator/technician. Usually, the default port that should be opened in your Firewall is  the 554.



STEP 2

Now that we have the URL information we can test it out. For our guide, we are using VLC media player for testing purposes. Go ahead and open up VLC Media Player. Next, we will need to click Media in the upper left of the VLC window. Then select the “Open Network Stream” option to pull up another window.

STEP 3

Now we must configure the URL with our username, password, and IP address. Once you have the URL properly formatted, copy it then paste it in the window. Once you are done click play to begin playback.

eden-remoteEVE Remote Plus


Three different view mode possibilities: “CLASSIC”, “MODAL” and “HIDDEN”. Learn more about component’s view modes.

MAP VIEW MODE

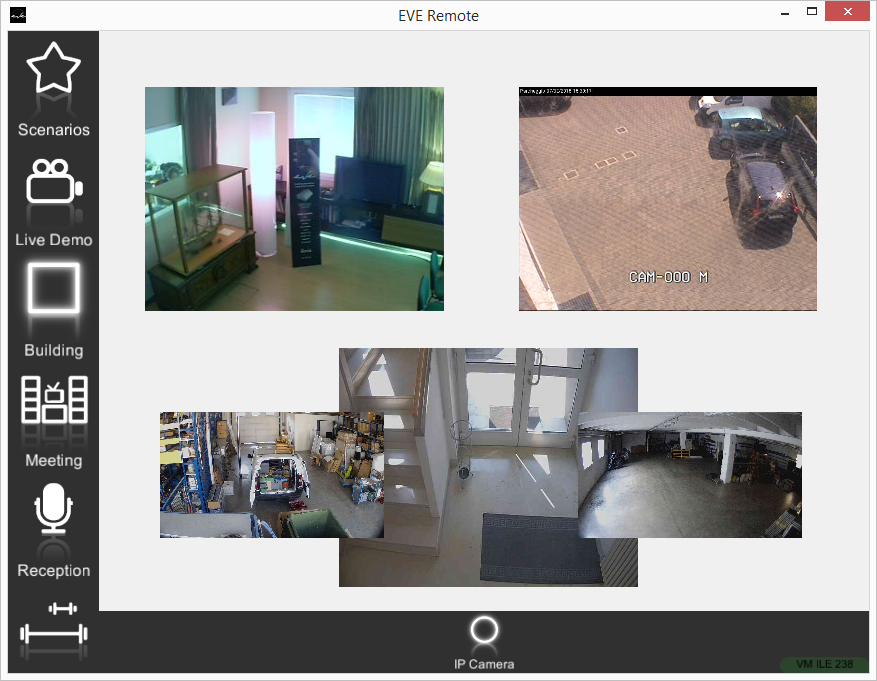

Here is the visual result of the component on EVE Remote (Map Style).

With the classic view mode configuration, you immediately see the IP Camera movie.

It is possible to edit dimensions of your IP Cameras depending on your necessities.

Also, you can add as many IP Cameras as you need in the same user interface tab playing with layers.

MODAL VIEW MODE

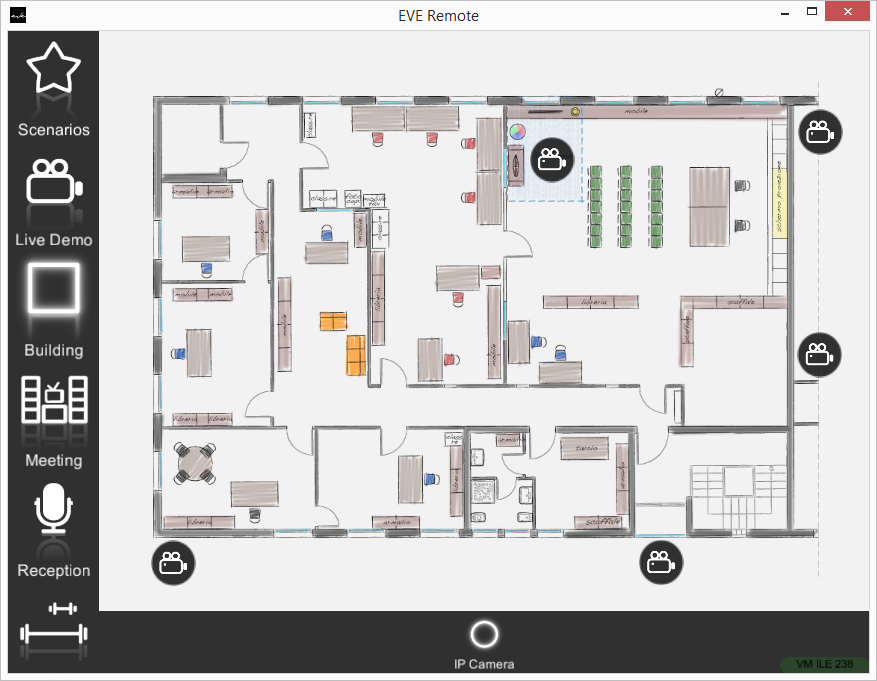

This is just one of the visual result possibilities of the component on the EVE Remote (Map Style).

Icons can be customized depending on your necessities from symbol to color and dimension.

In this case we can see the default icon layout:

IP Cameras ⇒ Camera icon

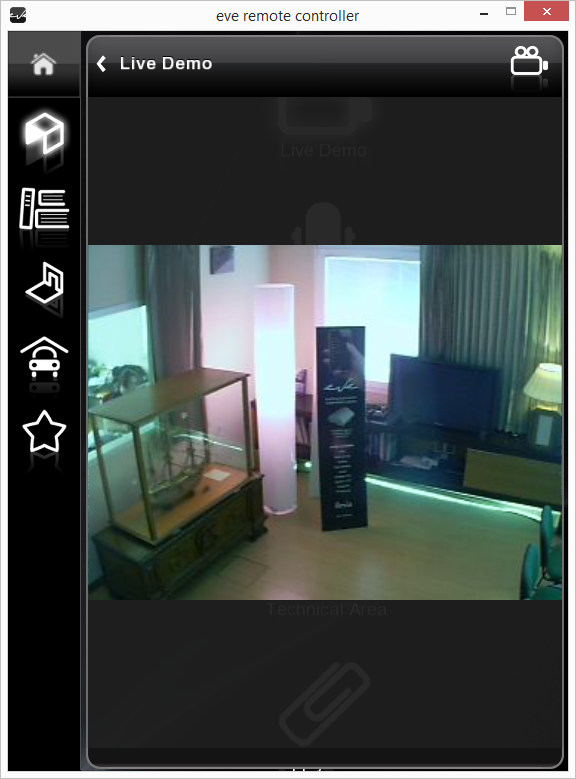

2015-07-02_15-47-23-1  Default icon  (customizable icon)               2015-07-02_15-44-46  Modal view  (IP camera mask)

CLASSIC VIEW MODE




Here is the visual result of the component on EVE Remote (Classic Style).

IP Camera is displayed as you can see in the picture.

IP Cameras ⇒ IP Camera mask

Well done, keep learning!
