pulsePulse


It sends an On / Off pulse to the actuator.

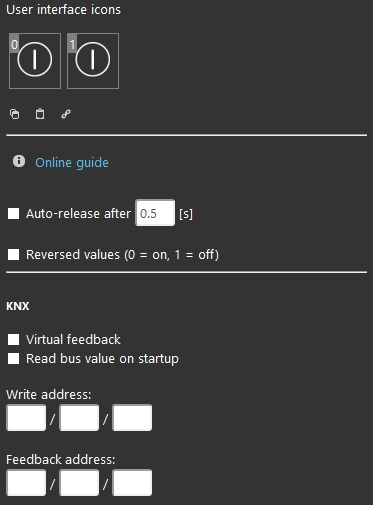

COMPONENT’S PROPERTIES

Auto-release function (checkbox): if ticked allows you to change seconds value;
After (…) seconds (number): it defines the number of seconds before component returns to 0;

Reversed value (checkbox): it reverses the value 0=on and 1=off.

KNX

This component’s sample is made by using KNX gateway.

Please refer to “Gateways / Protocols” guide in order to get further info.

Virtual Feedback (checkbox): please refer to “KNX protocol” guide;

Read bus value on startup (checkbox): please refer to “KNX protocol” guide;

Write / Feedback address

eden-remoteEVE Remote Plus


Three different view mode possibilities: “CLASSIC”, “MODAL” and “HIDDEN”. Learn more about component’s view modes.

MAP VIEW MODE

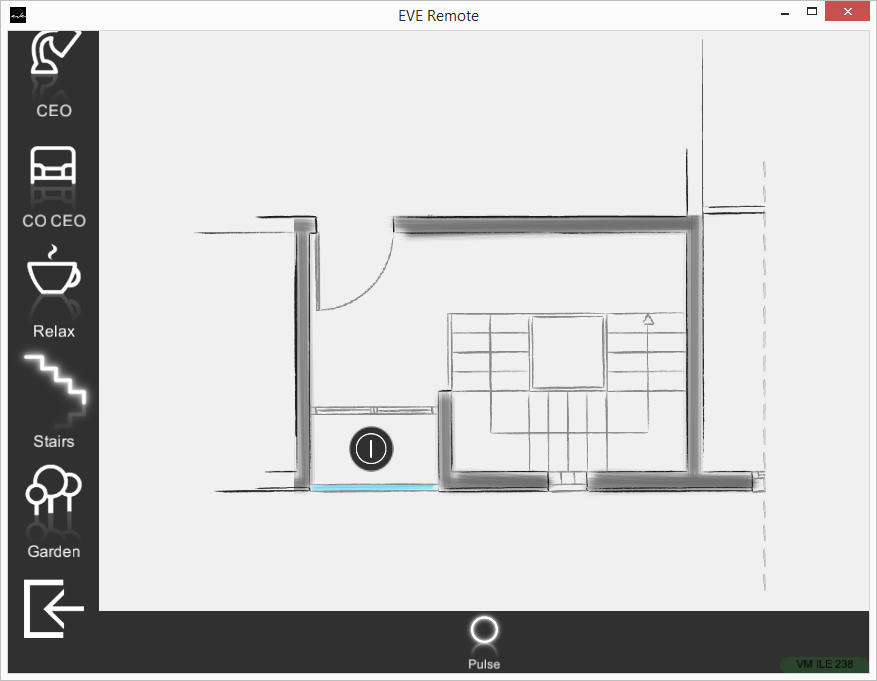

This is just one of the visual result possibilities of the component on the EVE Remote (Map Style).

Icons can be customized depending on your necessities from symbol to color and dimension.

In this case, we can see the default icon layout:

Doors, Gates, etc. ⇒ Pulse icon

2015-07-02_14-23-10-1  State 0 and 1 (customizable icon) *

*
Pulse provides a transition from value 0 to 1 then back again to the value 0.
The time for the return to the value 0 is set in the component parameters.

CLASSIC VIEW MODE

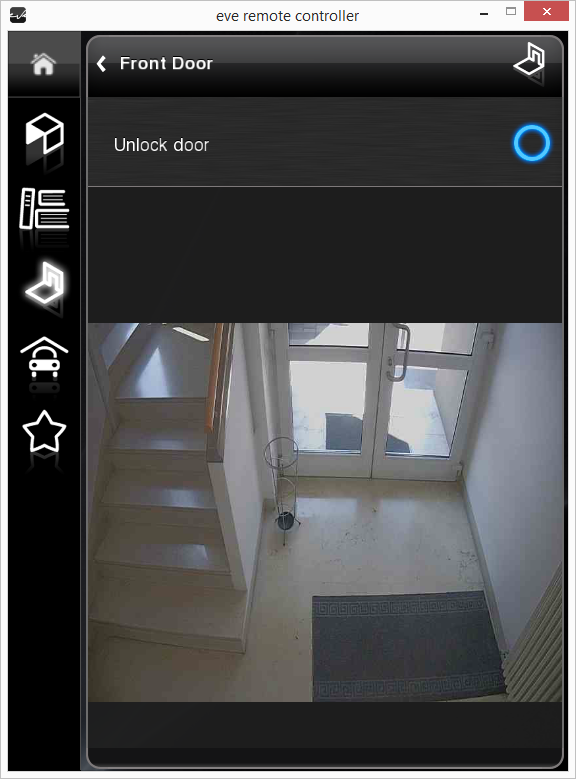

Here is the visual result of the component on EVE Remote (Classic Style).

Pulse is displayed as a white circle which light up when selected.*

Doors, Gates, etc. ⇒ Pulse mask

2015-07-02_14-24-24-1  State 0 (white circle)

2015-07-02_14-24-35-1  State 1 (blue circle)

*
Pulse provides a transition from value 0 to 1 then back again to the value 0.
The time for the return to the value 0 is set in the component parameters.
