RGB-lightRGB Light


It represents an RGB light color.

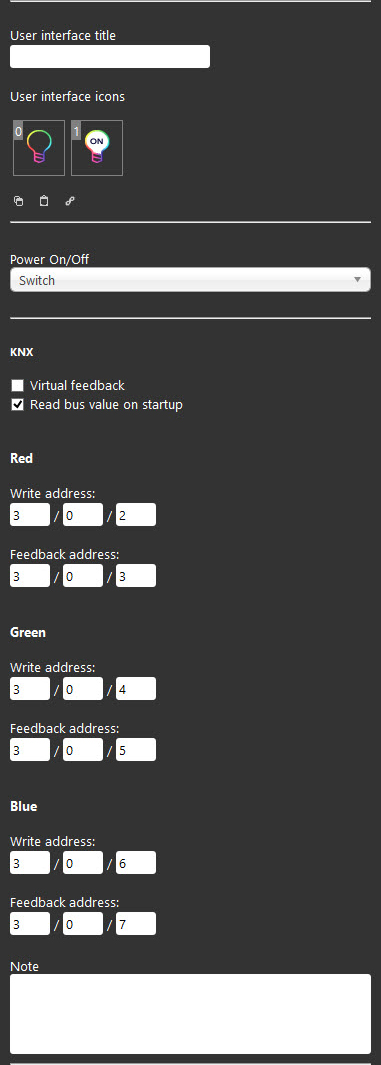

COMPONENT’S PROPERTIES

Customizable component’s title and icon. Please refer to “Common properties” guide.

Power On/Off: Switch component to switch on and off  the RGB light;

KNX

This component’s sample is made by using KNX gateway.

Please refer to “Gateways / Protocols” guide in order to get further info.

Virtual Feedback (checkbox): please refer to “KNX protocol” guide;

Read bus value on startup (checkbox): please refer to “KNX protocol” guide;

Write / Feedback address

eden-remoteEVE Remote Plus


Three different view mode possibilities: “CLASSIC”, “MODAL” and "HIDDEN". Learn more about the component's view modes.

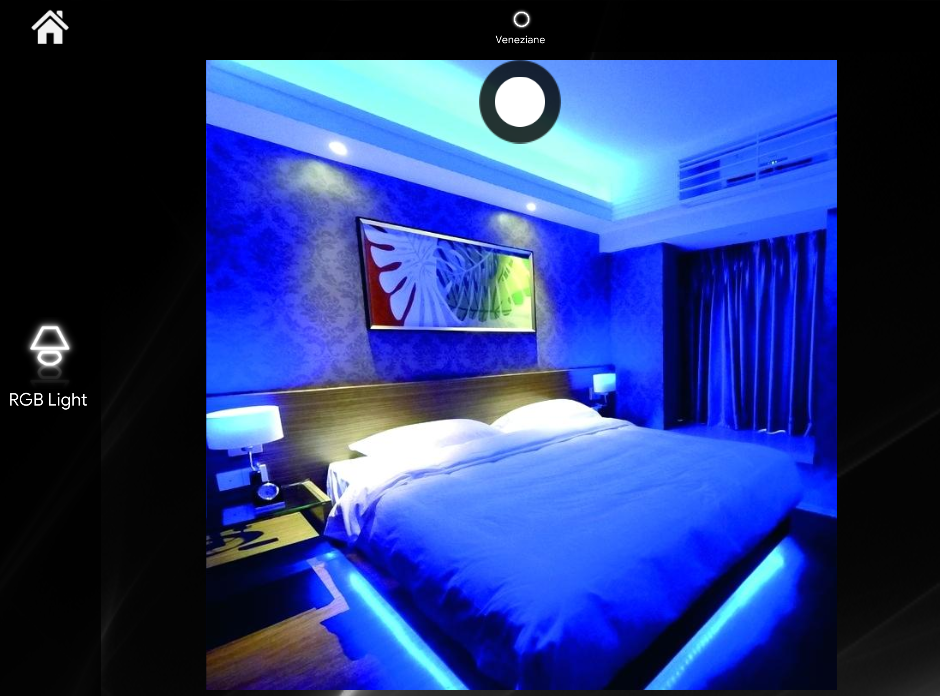

MAP VIEW MODE




This is just one of the visual result possibilities of the component on the EVE Remote (Map Style).

Icons can be customized depending on your necessities from symbol to color and dimension.

In this case, we can see the default icon layout:

RGB Light ⇒ RGB Light Icon

2015-07-01_14-42-30-1 Light off = empty light

2015-07-01_14-42-44-1 Light on= full light

RGB Light ⇒ RGB Mask

Luminosity

2015-07-01_15-22-28  Colore

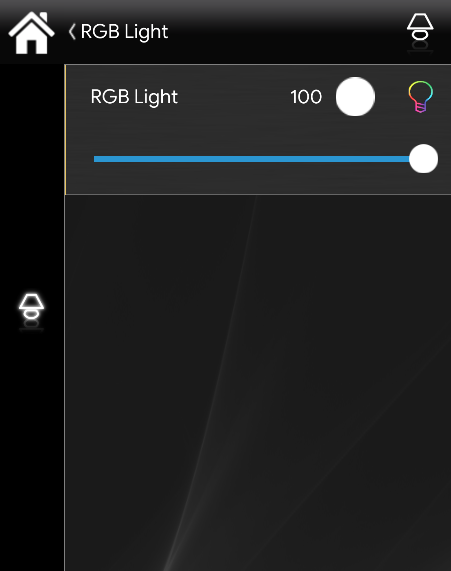

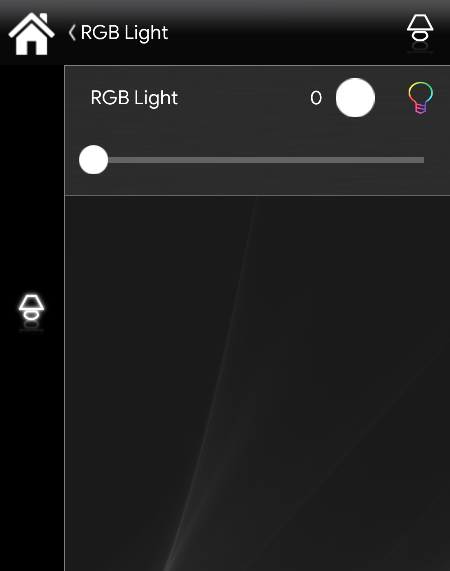

CLASSIC VIEW MODE




Here is the visual result of the component on EVE Remote (Classic Style).

RGB Light is displayed with the following mask:

RGB Light ⇒ RGB Mask

2015-07-01_14-42-30-1 Light off = empty light

2015-07-01_14-42-44-1 Light on= full light

2015-07-01_15-22-28  Color

Luminosity
