seekerSeeker


Used to call two scenarios with a dedicated graphics component. For example, to switch to a previous and next track of a CD player. The scenarios may be of any type, they can send different infrared or call the component feed track Vivaldi protocol.

COMPONENT’S PROPERTIES

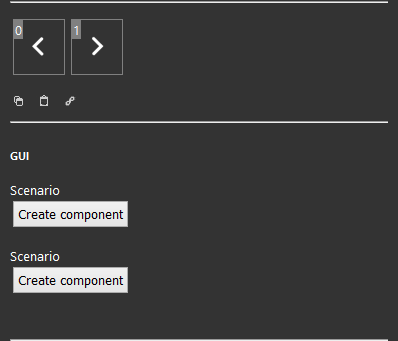

GUI

This component’s sample is made by using Graphic UI gateway.

Please refer to “Gateways / Protocols” guide in order to get further info.

Scenario: (button) it adds a scenario on “My components” area / (drop down) first scenario selection;

Scenario: (button) it adds a scenario on “My components” area / (drop down) second scenario selection.

eden-remoteEVE Remote Plus


Three different view mode possibilities: “CLASSIC”, “MODAL” and "HIDDEN". Learn more about the component's view modes.



MAP VIEW MODE

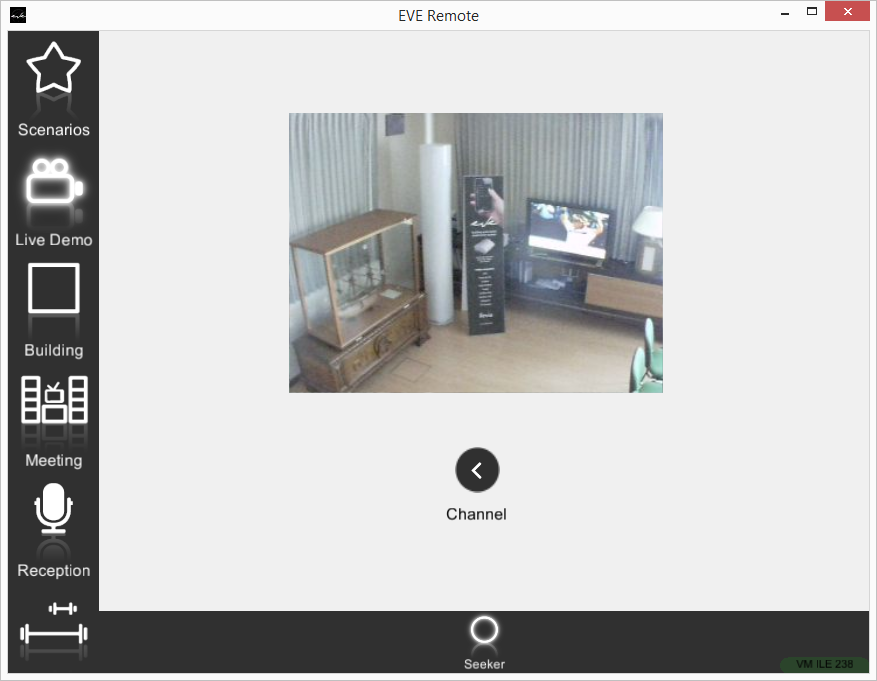

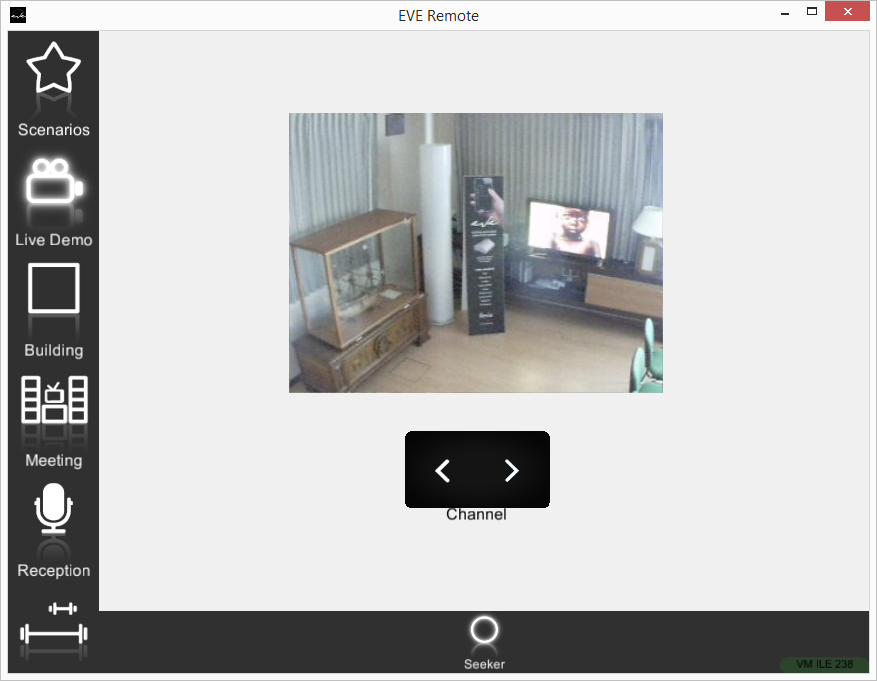

This is just one of the visual result possibilities of the component on the EVE Remote (Map Style).

Icons can be customized depending on your necessities from symbol to color and dimension.

In this case, we can see the default icon layout:

Channels, CDs, etc. ⇒ Seeker icon

2015-07-03_14-55-12-1  The first value of the list (customizable icon).

2015-07-03_14-55-41-1   Seeker mask.

2015-07-03_14-55-41-11  First scenario selection (customizable icon).

2015-07-03_14-55-41-12  Second scenario selection (customizable icon).

CLASSIC VIEW MODE

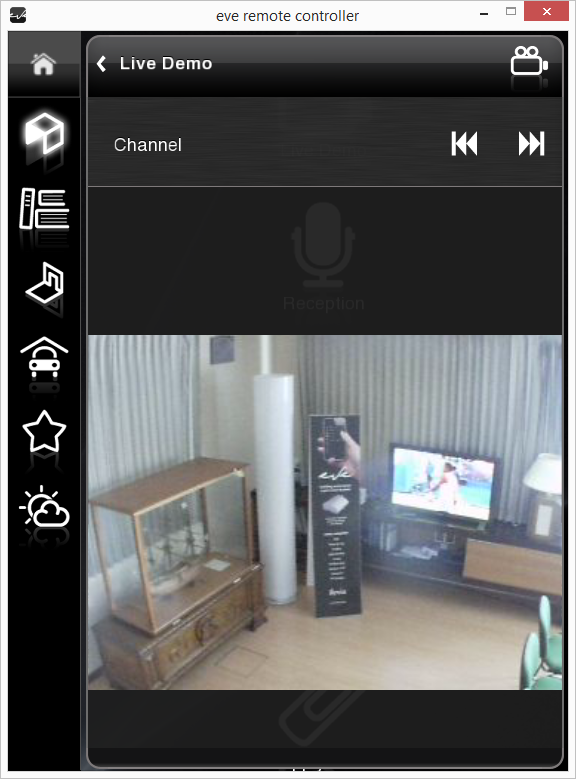

Here is the visual result of the component on EVE Remote (Classic Style).

Seeker is displayed with the following mask:

Channels, CDs, etc. ⇒ Seeker mask

2015-07-03_14-50-23-1  Seeker mask.

2015-07-03_14-50-23-1  First scenario selection (seeker mask).

2015-07-03_14-50-23-11  Second scenario selection (seeker mask).
