shutterShutter


It allows you to control shutter actuators.

COMPONENT’S PROPERTIES

Working Time (number): the time for opening/closing the curtain (milliseconds);

Venetian open/close scenario: (dropdown): allows the Venetian to rotate adding two scenarios components into the drop-down menu;

KNX

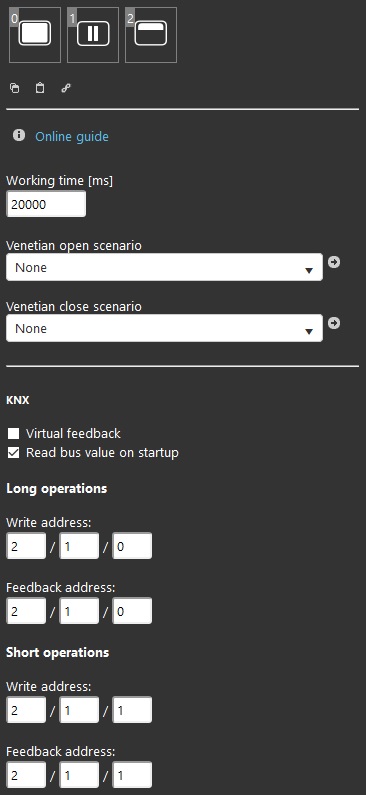

This component’s sample is made by using KNX gateway.

Please refer to “Gateways / Protocols” guide in order to get further info.

Virtual Feedback (checkbox): please refer to “KNX protocol” guide;

Read bus value on startup (checkbox): please refer to “KNX protocol” guide;

Long operation: (KNX address) keeping the key pressed for X seconds allows the Venetian blind to be opened or closed completely automatically;

Write / Feedback address

Short operation: (KNX address) by pressing the key quickly (click), will open or close the Venetian blind according to what has been defined inside ETS (for example a few centimeters);

Write / Feedback address





Working Time (number): the time for opening/closing the curtain (milliseconds);

Venetian open/close scenario: (dropdown): allows the Venetian to rotate adding two scenarios components into the drop-down menu;

GHOST

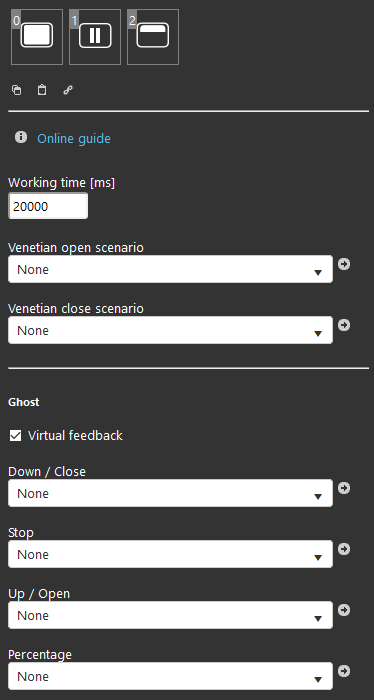

This component’s sample is made by using GHOST gateway.

Please refer to “Gateways / Protocols” guide in order to get further info.

Down / Close: (dropdown) using the Switch allows you to control the Venetian down/close movement;

Stop: (dropdown) by using a Switch it is possible to interrupt the movement of the Venetian blind;

Up/Open: (dropdown) using the Switch allows to control the Venetian descent/closing movement;

Percentage: (dropdown) via Slider component it’s possible to control the Venetian blind, for example setting it to 50% the Venetian blind will be half open;

eden-remoteEVE Remote Plus


Three different view mode possibilities: “CLASSIC”, “MODAL” and "HIDDEN". Learn more about the component's view modes.



MAP VIEW MODE




This is just one of the visual result possibilities of the component on the EVE Remote (Map Style).

Icons can be customized depending on your necessities from symbol to color and dimension.

In this case, we can see the default icon layout:

Curtain ⇒ Shutter icon

2015-07-01_16-40-52-1 Default icon  (customizable icon)

2015-07-01_16-35-04-1  Stop button (shutter mask).

2015-07-01_16-34-55-1  Open button (shutter mask).

2015-07-01_16-35-14-1  Close button (shutter mask).

Sunblinds rotation

The images on the left represent the possibility to control, through our application, the rotation of the sunblinds. Remember to enable the correct gateway before proceeding (in this example we’re using the KNX). Moreover for helping you will provide an already made example to download here.

CLASSIC VIEW MODE

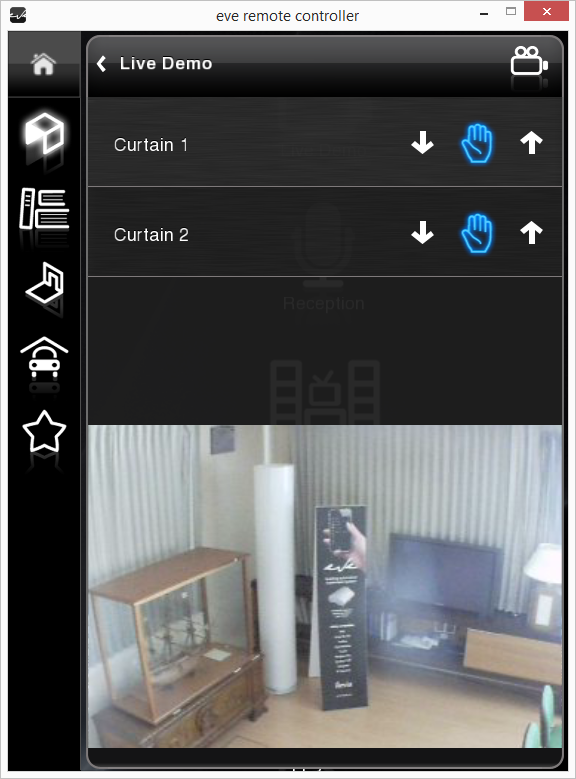

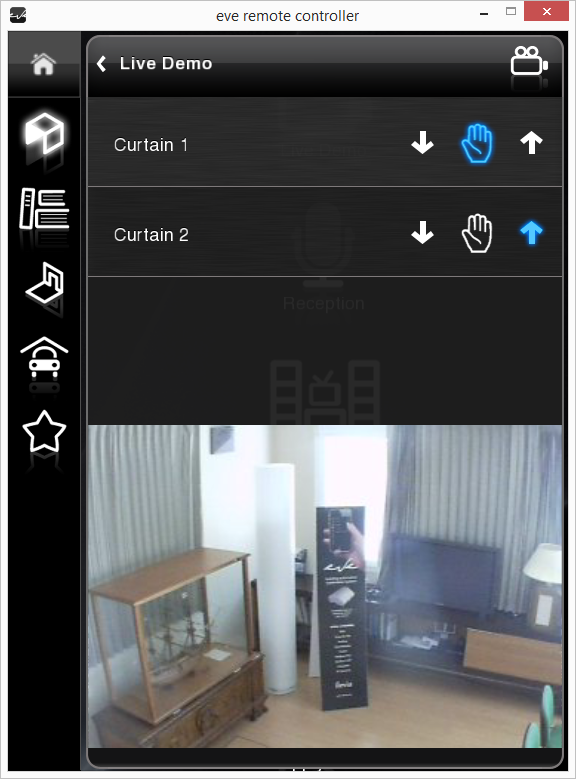

Here is the visual result of the component on EVE Remote (Classic Style).

The shutter is displayed with the following mask:

Curtain ⇒ Shutter mask

2015-07-01_16-27-35 Stop button (shutter mask).

2015-07-01_16-28-18 Direction button Up (shutter mask).

2015-07-01_16-29-05  Direction button Down (shutter mask).
