sliderSlider


The slider is the component that represents a percentage. The percentage control of a dimmer is performed by the Slider. If it is necessary to indicate a value other than 100 as the maximum value, you can change the default settings. It is also possible to subdivide the percentage at various points and define what icon should be used for each interval.

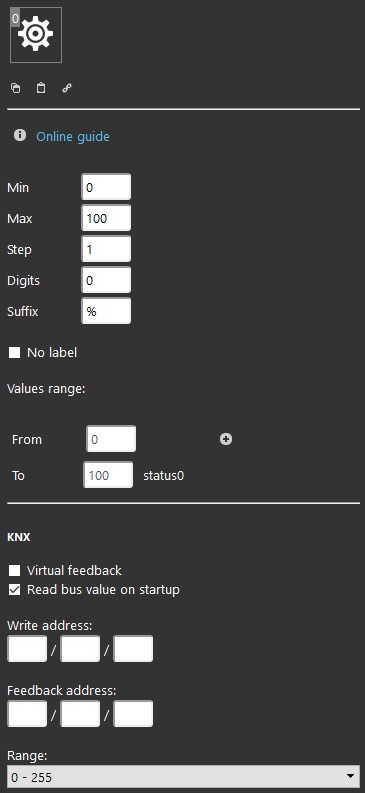

COMPONENT’S PROPERTIES

Min (value): Minimum value from 0 to 100;
Max
 (value): Maximum value from 0 to 100;
Step
 (value): step value from the previous and the following change;
Digits
 (number): digits after the comma;
Suffix
(symbol): %

No label (checkbox): it allows to hide the component’s label on the interface visual result;

Values range:
From
 (value): Lowest value
To
 (value): Higher value

You have the chance to add a new range.
Select the “+” icon and a new icon will be created to identify the new range.

KNX

This component’s sample is made by using KNX gateway.

Please refer to “Gateways / Protocols” guide in order to get further info.

Virtual Feedback (checkbox): please refer to “KNX protocol” guide;

Read bus value on startup (checkbox): please refer to “KNX protocol” guide;

Write / Feedback address

Range: it depends on the object set on the ETS database of the KNX module.

eden-remoteEVE Remote Plus


Three different view mode possibilities: “CLASSIC”, “MODAL” and "HIDDEN". Learn more about the component's view modes.



MAP VIEW MODE




This is just one of the visual result possibilities of the component on the EVE Remote (Map Style).

Icons can be customized depending on your necessities from symbol to color and dimension.

In this case, we can see the default icon layout:

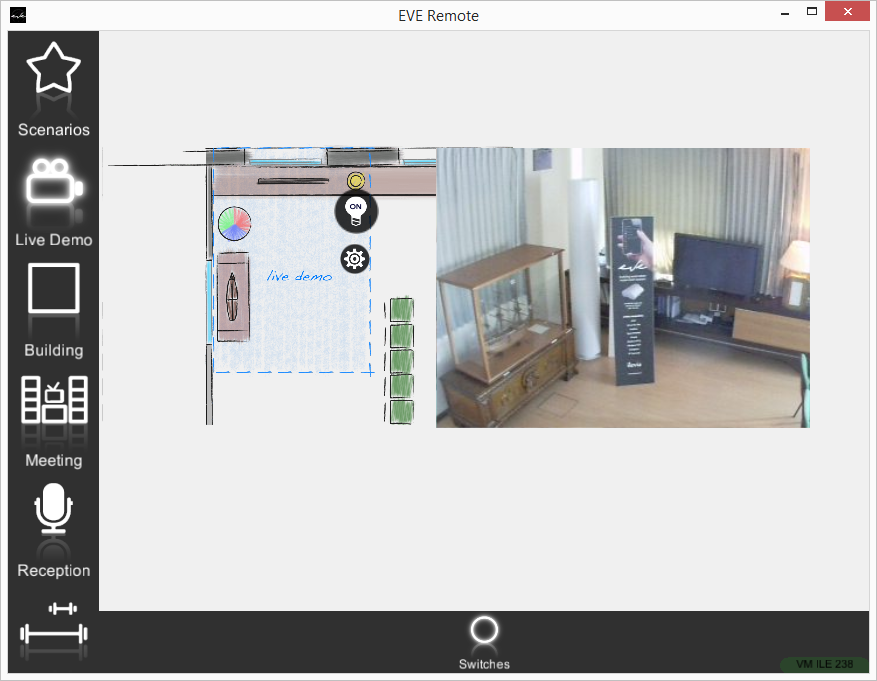

Dimmer ⇒ Setting icon

2015-07-01_10-56-42-1  Default icon  (customizable icon)

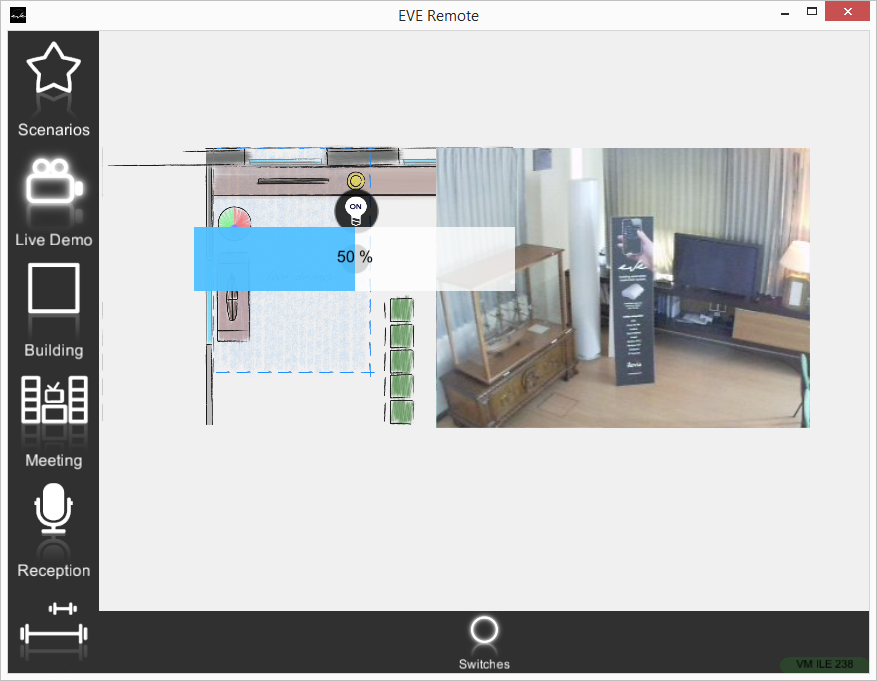

 2015-07-01_10-57-06-1  Sliding bar  (slider mask)

CLASSIC VIEW MODE




Here is the visual result of the component on EVE Remote (Classic Style).

Sliders are displayed as sliding bars which light up along the way.

Dimmer ⇒ Slider mask

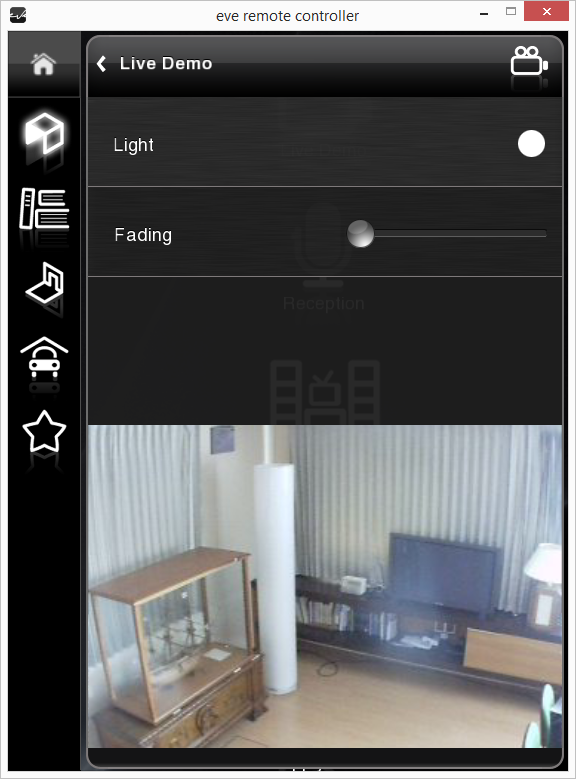

2015-07-01_12-02-22-1  Sliding bar 0% (slider mask)

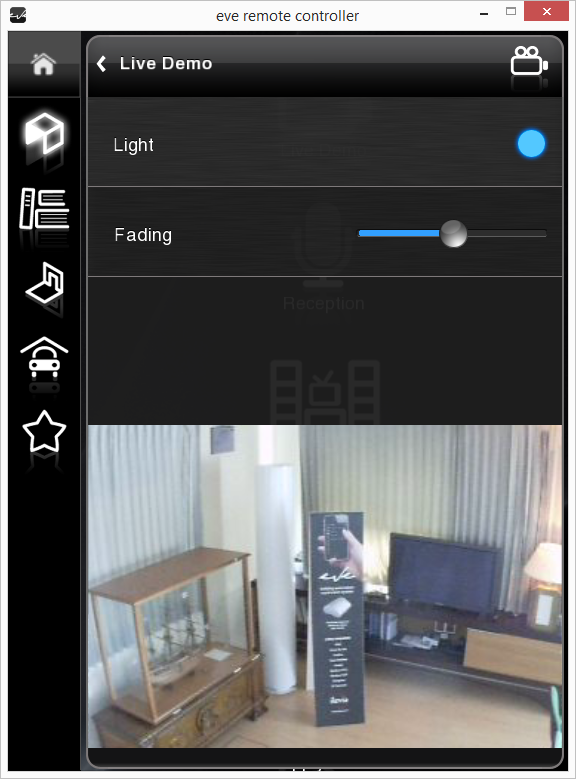

2015-07-01_10-54-29-1  Sliding bar 50% (slider mask)
