switchSwitch


It can represent the On / Off state of a sensor, it can command an actuator changing the parameter’s value. Also, it can be used as input of AND / OR logic, as a system command to activate scenarios or it can be controlled by weekly timers to generate events.

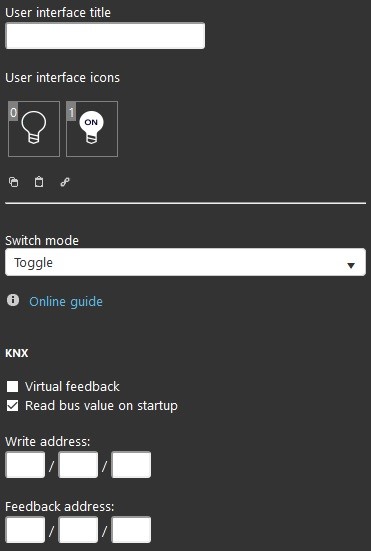

COMPONENT’S PROPERTIES

Customizable component’s title and icon. Please refer to “Common properties” guide.

Switch mode: It allows to automatically enable/disable the object state of the device in case of reboot or power off into the selected status in the drop-down menu.

KNX

This component’s sample is made by using KNX gateway.

Please refer to “Gateways / Protocols” guide in order to get further info.

Virtual Feedback: please refer to  KNX protocol” guide;

Read bus value on startup: please refer to “KNX protocol” guide;

Write / Feedback address

eden-remoteEVE Remote Plus


Three different view mode possibilities: “CLASSIC”, “MODAL” and “HIDDEN”. Learn more about component’s view modes.

MAP VIEW MODE




This is just one of the visual result possibilities of the component on the EVE Remote (Map Style).

Icons can be customized depending on your necessities from symbol to color and dimension.

In this case, we can see three switches with different layout:

Lights ⇒ Light icon

2015-07-01_09-56-31-1  State Off (empty light)

2015-07-01_09-56-31-2  State On (full light)

TV ⇒ Lever icon

2015-07-01_09-56-31  State Off (lever down)

2015-07-01_09-56-42  State On (lever up)

CLASSIC VIEW MODE




Here is the visual result of the component on EVE Remote (Classic Style).

Switches are displayed as an empty button which lights up when selected.

Switches ⇒ Switch mask

2015-07-01_09-27-40-1  State Off (white circle)

2015-07-01_09-27-20-1  State On (blue circle)
