text-infoText Info


It allows you to see different texts with different colors on the EVE Remote user interface according to the On / Off status value.

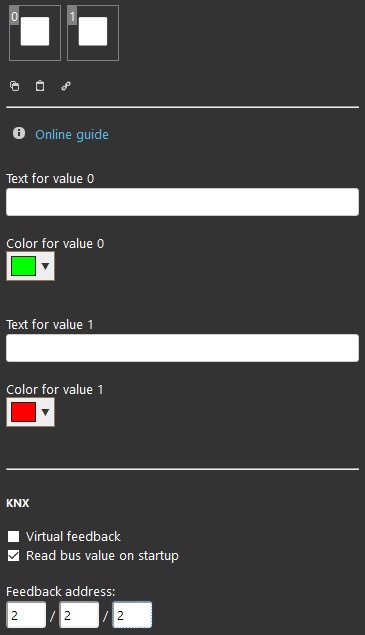

COMPONENT’S PROPERTIES

Text:

When the value is 0: enter the text that has to visualized on the interface when the value is 0;
When the value is 1: enter the text that has to visualized on the interface when the value is 1;

Color:

When the value is 0: choose the icon color when the value is 0 (right click on the box);
When the value is 1: choose the icon color when the value is 1 (right click on the box).

KNX

This component’s sample is made by using KNX gateway.

Please refer to “Gateways / Protocols” guide in order to get further info.

Virtual Feedback (checkbox): please refer to “KNX protocol” guide;

Read bus value on startup (checkbox): please refer to “KNX protocol” guide;

Write / Feedback address

eden-remoteEVE Remote Plus


Three different view mode possibilities: “CLASSIC”, “MODAL” and "HIDDEN". Learn more about the component's view modes.



MAP VIEW MODE




Here is just one of the visual result possibilities of the component on EVE Remote (Map Style). Icons can be customized depending on your necessities from symbol to color and dimension.

In this case, we can see the default icon layout:

Dimmer ⇒ Setting icon

2015-07-01_10-56-42-1  Default icon  (customizable icon)

 2015-07-01_10-57-06-1  Sliding bar  (slider mask)

CLASSIC VIEW MODE




Here is the visual result of the component on EVE Remote (Classic Style).

Sliders are displayed as sliding bars which light up along the way.

Dimmer ⇒ Slider mask

2015-07-01_12-02-22-1  Sliding bar 0% (slider mask)

2015-07-01_10-54-29-1  Sliding bar 50% (slider mask)
