thermostatThermostat


It allows you to change a setpoint of a thermostat.

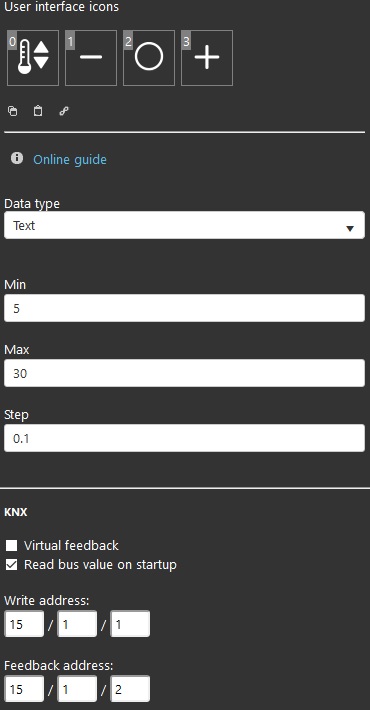

COMPONENT’S PROPERTIES

Min (value): Minimum value;
Max
 (value): Maximum value;
Step (value): step value from the previous and the following change;

KNX

This component’s sample is made by using KNX gateway.

Please refer to “Gateways / Protocols” guide in order to get further info.

Virtual Feedback (checkbox): please refer to “KNX protocol” guide;

Read bus value on startup (checkbox): please refer to “KNX protocol” guide;

Write / Feedback address

MAP VIEW MODE




This is just one of the visual result possibilities of the component on the EVE Remote (Map Style).

Icons can be customized depending on your necessities from symbol to color and dimension.

In this case, we can see the default icon layout:

Heating ⇒ Thermostat icon

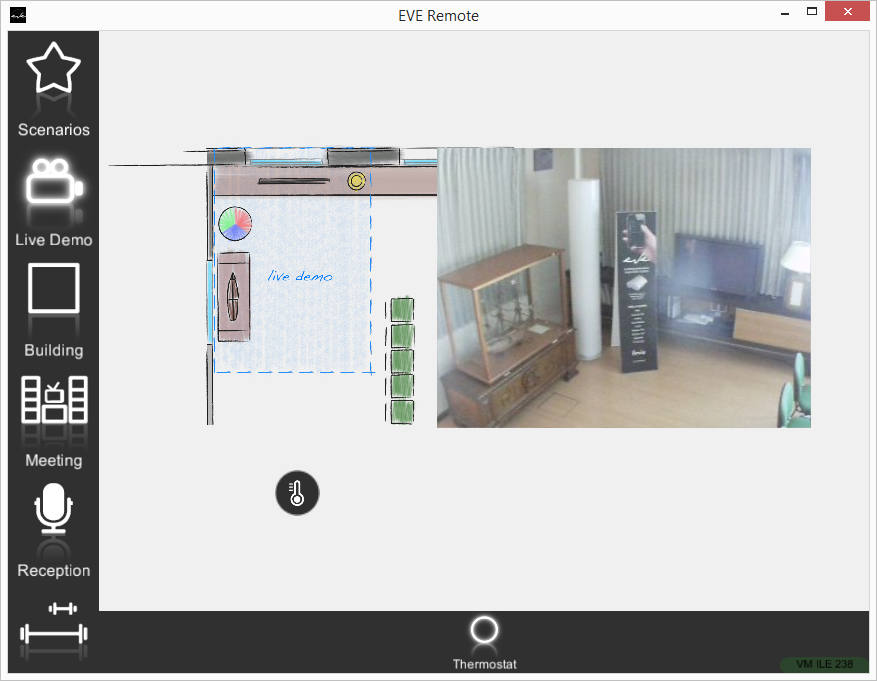

2015-07-01_17-04-38-1 Default icon  (customizable icon)

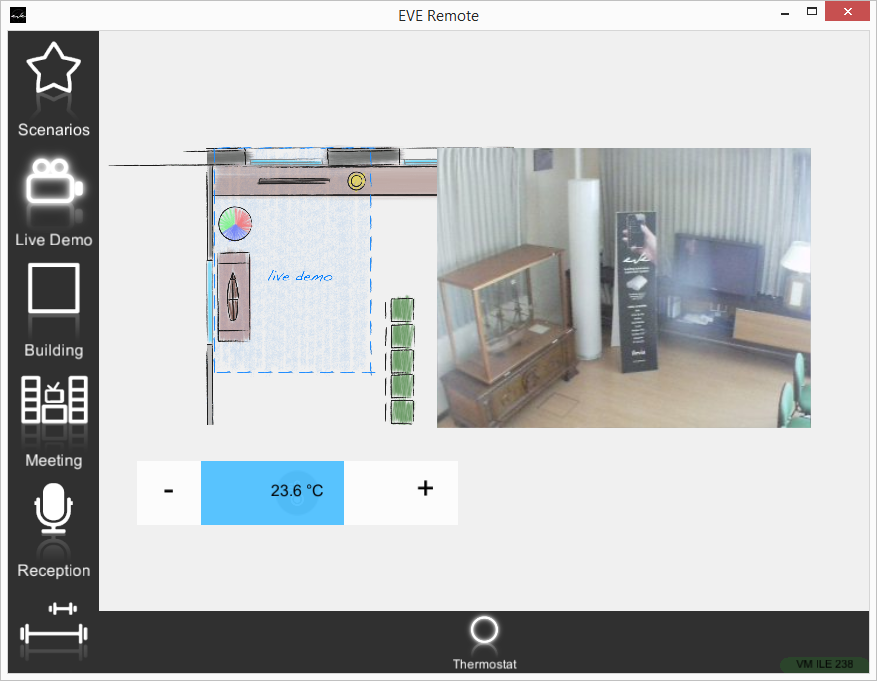

2345-1  Sliding bar  (thermostat mask)

CLASSIC VIEW MODE




This is the visual result of the component on the EVE Remote (Classic Style).

The thermostat is displayed with the following mask:

Heating ⇒ Thermostat mask

2015-07-01_17-08-51  Step command (thermostat mask)
