timed-thermostatTimed Thermostat


It allows the user to schedule the temperature of a thermostat.

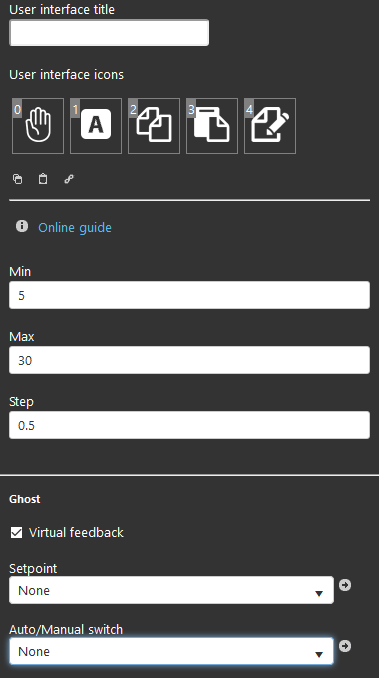

COMPONENT’S PROPERTIES

Min (value): Minimum value;
Max
 (value): Maximum value;
Step (value): step value from the previous and the following change;

Setpoint:(dropdown) the temperature at which the switch is activated;

Auto/Manual switch:(dropdown) using a “Switch” component allows you to set the thermostat in auto mode or manual mode;



KNX

This component’s sample is made by using KNX gateway.

Please refer to “Gateways / Protocols” guide in order to get further info.

Virtual Feedback (checkbox): please refer to “KNX protocol” guide;

Read bus value on startup (checkbox): please refer to “KNX protocol” guide;

Write / Feedback address

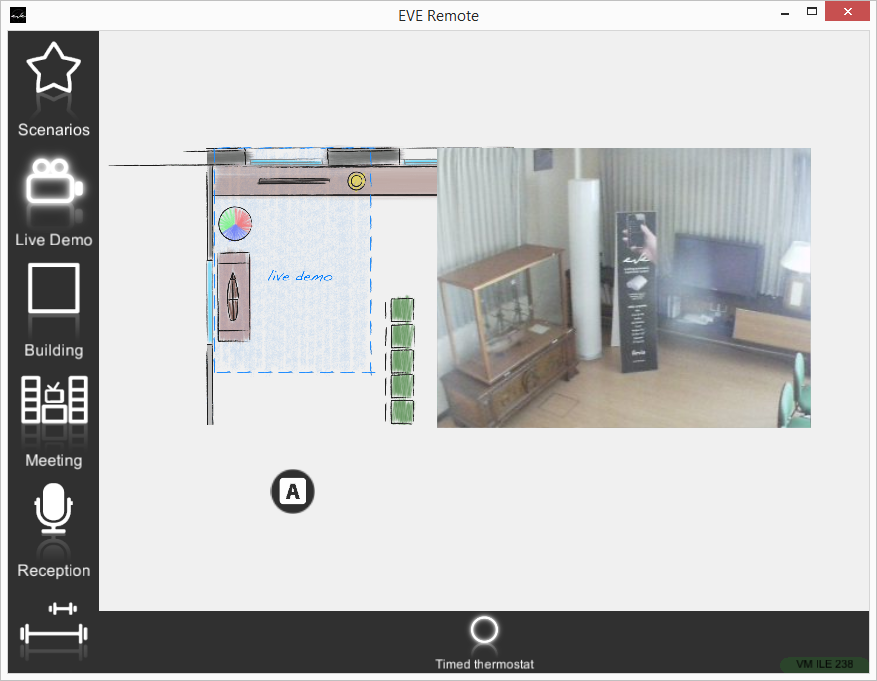

MAP VIEW MODE




This is just one of the visual result possibilities of the component on the EVE Remote (Map Style). Icons can be customized depending on your necessities from symbol to color and dimension.

In this case, we can see the default icon layout:

Timed thermostat ⇒ Manual icon

2015-07-01_17-31-37-1 Default icon  (customizable icon)

Timed thermostat ⇒ Automatic icon

2015-07-01_17-32-02-1  Default icon  (customizable icon)

2015-07-01_18-02-37  Copy setting     2015-07-01_18-03-00  Paste setting      2015-07-01_18-03-33  Edit setting

Sliding bar from 5°C to 30°C (timed thermostat mask)

Temperature is set through a sliding bar which lights up along the way.

2015-07-01_17-43-53

Day selection (Mon, Tue, Wed, Thu, Fri, Sat, Sun)

CLASSIC VIEW MODE




Here is the visual result of the component on EVE Remote (Classic Style).

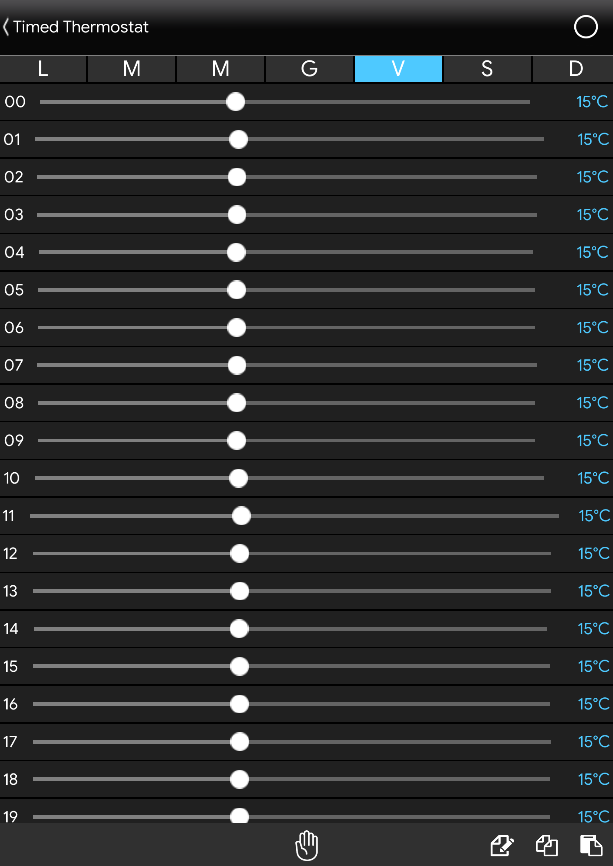

The timed thermostat is displayed with the following mask:

Timed thermostat ⇒ Timed thermostat mask

2015-07-01_17-43-53  Day selection (Mon, Tue, Wed, Thu, Fri, Sat, Sun);

  Sliding bar from 5°C to 30°C (timed thermostat mask. Temperature is set through a sliding bar which lights up along the way;

 Manual mode;

 Auto Mode;

PRACTICAL GUIDE FOR THE
TIMED THERMOSTAT CONFIGURATION

The main benefit obtainable in the use of one or more timed thermostat in your home is the ability to adjust the temperature according to schedules set by us, with the aim of using the heating only in times of real and effective need. Using the Eve Remote Plus App it will be possible to enable the heating automatically according to the time bands chosen by us or simply to control them manually.

The use of multiple timed thermostats in a home allows you to keep the sleeping area cooler, for example, during the day and to heat it only from the evening hours. The discrimination between zones and different time slots ensures significant energy savings.

How to configure a timed thermostat

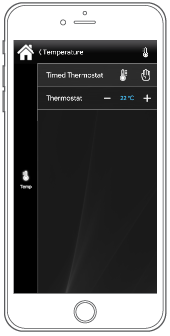

In this screen we will find two components:

  1. The timed thermostat has two icons, pressing the thermometer   icon will enter the programming mode that we will see in the next steps and the icon of a hand , which means that the timed thermostat is currently set to manual mode and therefore not will take into account the programming we have made. If you press the hand icon, this will change to   that will instead activate the weekly schedule we have made.
  2. The thermostat controls the temperature using the and + commands.

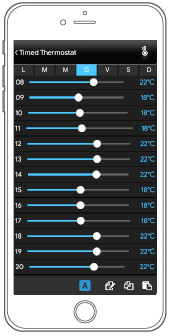

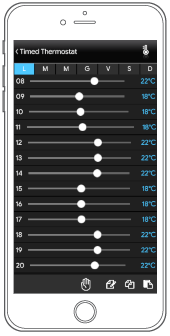

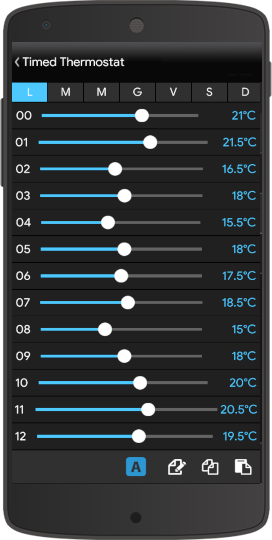

To enter the programming mode of our timed thermostat, press the thermometer  icon once. The screen that appears contains the 7 days of the week and the 24 hours of the day. With the horizontal cursors it will be possible to increase or decrease the temperature of a specific time, instead keeping the ball of our cursor pressed you can set the value using the virtual keypad. For example in this image we have set a typical working day schedule by increasing the temperature only when the person is at home.

The icons at the bottom right represent respectively:

Copy/Paste values of the day  .

Copy timed thermostat values

Paste values to another timed thermostat  .

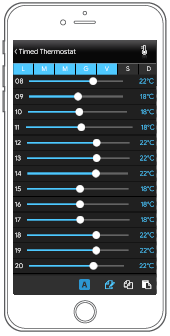

To copy the values of a day we press the copy icon  of the day that we want to use as a reference and select the relevant days of the week by pressing the day button, for example, Thursday  on which to copy this value. Once pressed again  , the days will be copied as the day of reference initially selected by us.

In the case of several programmable timed thermostats, it will be possible to copy the values of the timed thermostat 1 and paste them on the timed thermostats 2,3,4 etc. To perform this operation, simply press the icon on the timed thermostat with the original values, move to the desired timed thermostat and paste the values by pressing the icon  .
