tunerChangeable Value


This component is similar to the slider component. However, it shows the actual component’s value on the BUS rather than being a percentage. It may indicate a level of LUX of a sensor. It can also be used to set a brightness threshold to use as a comparison in other components in order to activate lights or other types of automatisms.

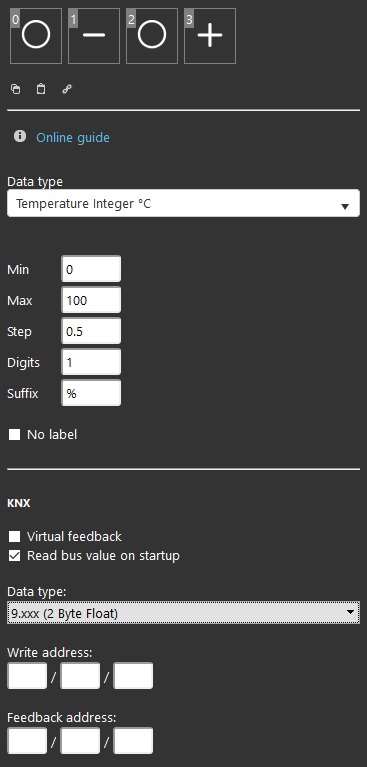

COMPONENT’S PROPERTIES

Data type:  the type of data that you’ll control (Temperature, Power, Airflow etc.).

Min (value): Minimum value from 0 to 100;
Max
(value): Maximum value from 0 to 100;
Step
 (number): step value from the previous and the following change;
Digits
 (number): digits after the comma;
Suffix
 (symbol): %

No label (checkbox): it allows to hide the component’s label on the interface visual result;

KNX

This component’s sample is made by using KNX gateway.

Please refer to “Gateways / Protocols” guide in order to get further info.

Virtual Feedback (checkbox): please refer to “KNX protocol” guide;

Read bus value on startup (checkbox): please refer to “KNX protocol” guide;

Data type

Write / Feedback address

GHOST

Update on change (checkbox): the message is sent instantaneously to the bus when change is made.

eden-remoteEVE Remote Plus


Three different view mode possibilities: “CLASSIC”, “MODAL” and "HIDDEN". Learn more about the component's view modes.



MAP VIEW MODE




This is just one of the visual result possibilities of the component on the EVE Remote (Map Style).

Icons can be customized depending on your necessities from symbol to color and dimension.

In this case, we can see the default icon layout:

Volume, Thresholds, etc. ⇒ Changeable Value icon

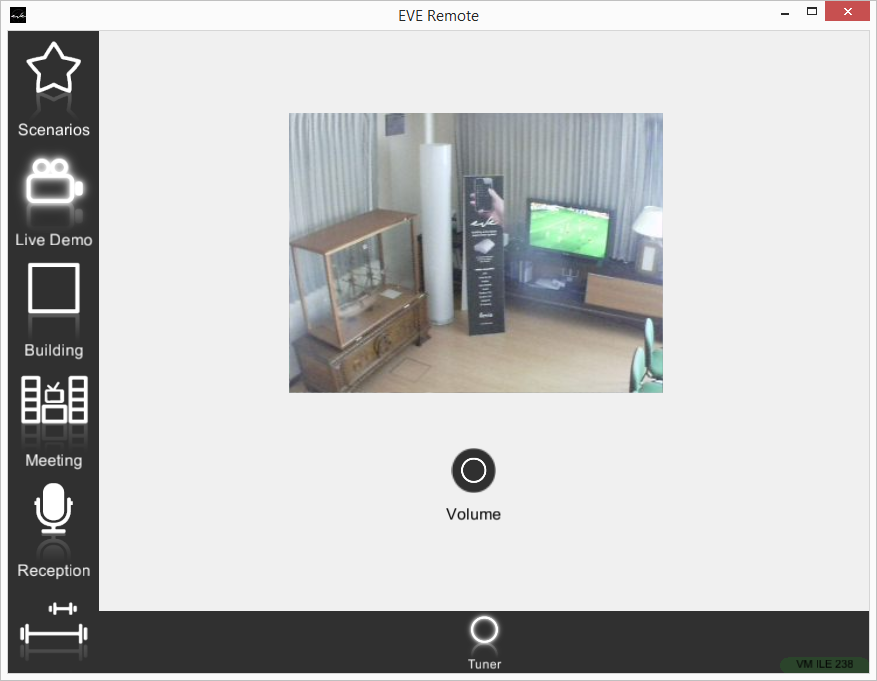

2015-07-03_14-25-34-1 Default icon  (customizable icon).

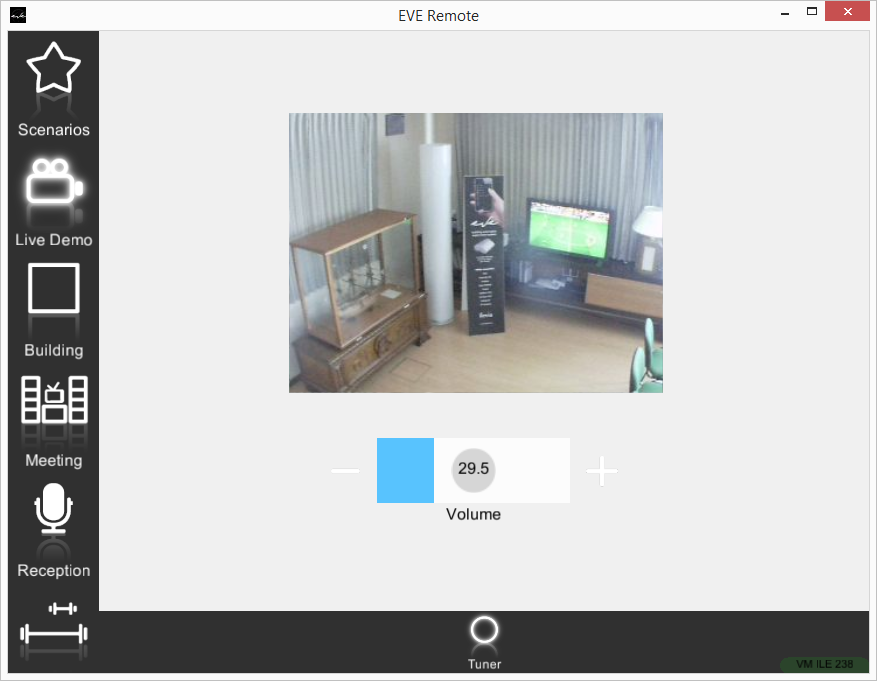

2015-07-03_14-23-50-1  Sliding bar  (tuner mask).

KEEP OPEN VIEW MODE

In this case, the tuner slider won’t ever close.

Tuner sliding bar will always be displayed as an open bar:

2015-07-03_14-23-50-1  Sliding bar  (tuner mask).

CLASSIC VIEW MODE




Here is the visual result of the component on EVE Remote (Classic Style).

The tuner is displayed with the following mask:

Volume, Thresholds, etc. ⇒ Tuner mask

2015-07-03_14-38-20  Step command (tuner mask).
