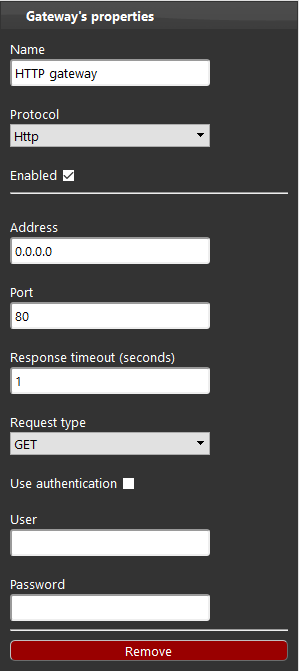

HTTP gateway’s parameters


COMMON PROPERTIES

Name (field): enter the title for your KNX gateway;

Protocol (drop down): choose the protocol to match with the gateway;

Enable (check box): it allows to enable /disable the selected gateway;

Address: enter the device IP address;

Port: enter the communication port;

Response timeout (seconds): response time of the device after it has received a call;

Request type: select the device request method (GET, POST, PUT);

Use authentication: select if the device request authentication;

User: enter the authentication user;

Password: enter the authentication password;

Component’s parameters


Path: text field where to enter the URL of the device for communication;

Data: text field where to enter the command to run to the device;

Validate if response contains: text field where to enter the value to be compared with the device response to verify if it is valid;
