KNX gateway’s parameters

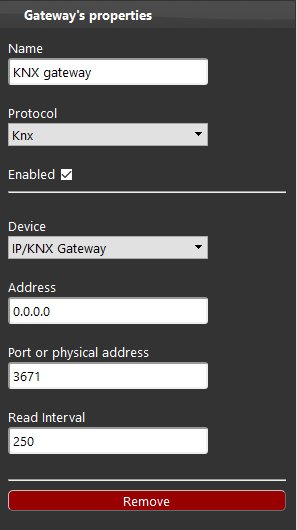

COMMON PROPERTIES

Name (field): enter the title for your KNX gateway;

Protocol (drop down): choose the protocol to match with the gateway;

Enable (check box): it allows to enable /disable the selected gateway;

Device (drop down): select the type of device;

Address (field): IP address of the KNX gateway or serial address (/dev/ttyS1) of the device X1;

Port (field): TCP port of the KNX gateway (default: 3671);

or physical address (number): when usign USB KNX Interfaces or Raspberry addon boards;

Read interval (number): waiting time between each group read (250 milliseconds).


Component’s parameters

Virtual feedback: message generated by the server to create the feedback when the physical device does not have the function of creating this message;

Read bus value on startup: it allows to read the bus value when the project is uploaded and when EVE is run.
