Vimar gateway’s parameters

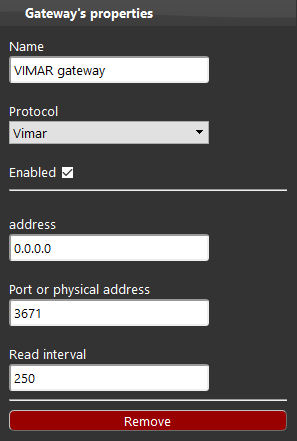

COMMON PROPERTIES

Name (field): enter the title for your KNX gateway;

Protocol (drop down): choose the protocol to match with the gateway;

Enable (check box): it allows to enable /disable the selected gateway;

Address (field): IP address of the Vimar gateway or serial address (/dev/ttyS1) of the device X1;

Port (field): TCP port of the Vimar gateway (default: 3671);

or physical address (number): when usign USB KNX Interfaces or Raspberry addon boards;

Read interval (number): waiting time between each group read (250 milliseconds).

Component’s parameters


Article: select the type of device to assign to the component;

Functional block: select the output that will be controlled by the component;

Physical address: enter the physical address of the device;

Group address: enter the group address of the device;
