2015-10-22_16-59-38-5Calculator


This component performs for your calculations on values of other parameters and then display the result directly on the user interface or use it in other components such as the component If Then. You can use up to 4 components as function variables calculated. The functions of this component are also available in Excel.

Reminder before starting

FREE test

We provide you a test project already configured in order to let you try on your own the plugin’s functionalities in just a few quick steps.

-> GO TO THE SAMPLE PROJECT

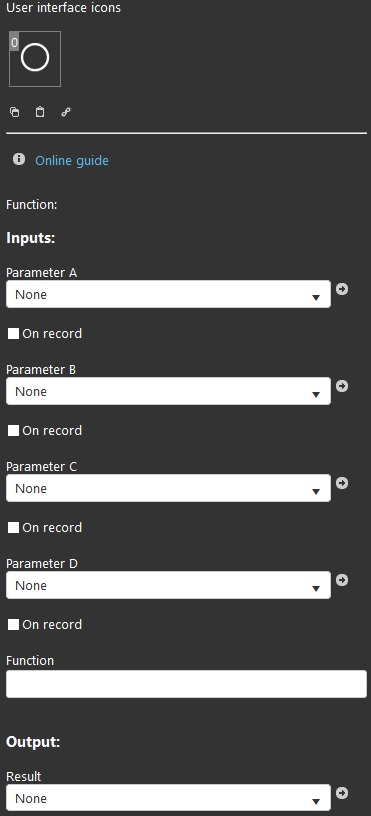

COMPONENT’S PROPERTIES

GUI

This component’s sample is made by using Graphic UI gateway.

Please refer to “Gateways / Protocols” chapter in order to get further info.

Parameter A: Insert a component on which to perform a mathematical operation (Switch, Pulse, Info, Slider, Tuner).

Parameter B: Insert a component on which to perform a mathematical operation (Switch, Pulse, Info, Slider, Tuner).

Parameter C: Insert a component on which to perform a mathematical operation (Switch, Pulse, Info, Slider, Tuner).

Parameter D: Insert a component on which to perform a mathematical operation (Switch, Pulse, Info, Slider, Tuner).

On record: (checkbox) the value is activated at the time the parameter is registered.

Function: Enter the mathematical operation you want to do. Example: If in the parameters A and B I have inserted two Slider and I want to know the sum, in the field I enter “a+b”.

Result: Insert a component where display the result of the mathematical operation (Switch, Pulse, Info, Slider, Tuner).

Note: text field available for additional information on the component from the admin side.

Reminder before continuing:

  • Download and Install EVE Logic plugin to enable plugins (link);
  • After loading .eve project to the server, wait a couple of minutes for logics activation.
