chartChart


This component allows you to create graphs using gathered information and to display them in the user interface. Each information deriving from a sensor, or counter, or switch can be used to be represented in a chart.

A reminder before continuing:

Before using this component it is recommended to view the technical guides of the following components to fully understand the process of configuration of the component Chart:

  • Recorder
  • Info
  • Download and Install EVE Logic plugin to enable plugins (link);
  • After loading .eve project to the server, wait a couple of minutes for logics activation.

COMPONENT’S PROPERTIES

Customizable component’s title and icon. Please refer to “Common properties” guide.

GUI

This component’s sample is made by using Graphic UI gateway.

Please refer to “Gateways / Protocols” guide in order to get further info.

Chart’s data source: the component that defines data displayed on the chart;
You can choose from any Recorder‘s component which data you want to record.

Default time lapse: time lapse of the chart’s data visualization (Day, Week, Month, Year);

Chart’s date picker: Date picker component that allows the chart’s date selection on the user interface;

Chart’s range picker: Drop Down component that allows the chart’s range selection on the user interface;

Min value: min axes’ value, leaving this field empty will set automatically the scale’s values;

Max value: max axes’ value leaving this field empty will set automatically the scale’s values;

Draw axis: allows to enable or disable the drawing of the graph axis, in the map view mode it will allow overlapping one or more graphs;

Axes color: color picker for the chart’s axes;

Grid color:  color picker for the chart’s grid;

Text color:  color picker for the chart’s text;

Data color: color picker for the chart’s data;

Date picker offset: (value) allows you to watch different graphs on the same map using different time intervals.

Note: text field available for additional information on the component from the admin side.

eden-remoteEVE Remote Plus


Three different view mode possibilities: “CLASSIC”, “MODAL” and “HIDDEN”. Learn more about the component’s view modes.

CLASSIC VIEW MODE




Chart’s date is displayed next to the chart’s date picker icon.



Chart’s date picker icon. Tap on it to change the date.

















Zoom in / zoom out on the chart to focus on a specific time..



Move it forward and back to analyze chart’s data.

Chart’s range picker icon. Tap on it to select a different time lapse (Day, Week, Month, Year).

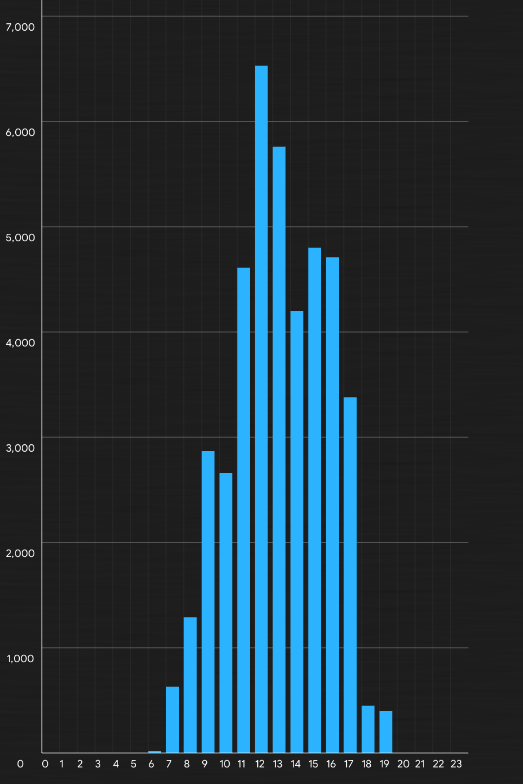

DAY

WEEK

MONTH

YEAR
