go-toGo to


This component has been developed in order to speed up the navigation when using EVE Remote Map app. In fact, it allows you to jump from a tab to another with a simple click on the Go to icon placed where you want within the map interface.

COMPONENT’S PROPERTIES

Customizable component’s title and icon. Please refer to “Common properties” guide.

GUI

This component’s sample is made by using Graphic UI gateway.

Please refer to “Gateways / Protocols” chapter in order to get further info.

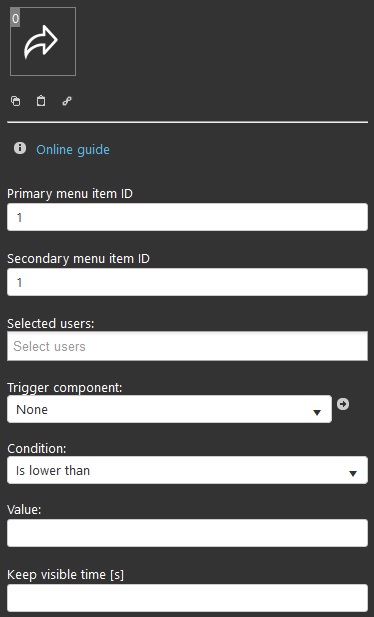

Primary menu item ID: enter the desired coordinate relative to the primary menu;

Secondary menu item ID: enter the desired coordinate relative to the secondary menu;

Selected users: select the users that will have access to this component;

Trigger component: (dropdown) we recommend to use a “Switch” or “Dropdown” components to trigger the event and change the relative state (0/1);

Condition: (dropdown) let you choose the condition to enable the trigger, for example: If the value (textbox below) is lower than 0 “GO TO”;

Value: the value that the user can set to trigger an event;

Keep visible time [s]: how many seconds the window will remain visible;

A reminder before continuing:

  • Download and Install EVE Logic plugin to enable plugins (link);
  • After loading .eve project to the server, run EVE Remote app, log in and then wait a couple of minutes for logics activation.

eden-remoteEVE Remote Plus


Three different view mode possibilities: “CLASSIC”, “MODAL” and "HIDDEN". Learn more about the component's view modes.



MAP VIEW MODE




2016-02-15_18-35-22  and 2016-02-15_18-34-46  —>  Go to the icon. Tap on it to jump to the defined tab.

Well done, keep learning!
