Notification


This component allows receiving push notification directly from your EVE app. It is particularly useful for getting alerts and be informed about the state of the building installation (sensors, actuators, temperatures, etc.).

Reminder before starting

FREE test

We provide you with a test project already configured in order to let you try on your own the plugin’s functionalities in just a few quick steps.

-> GO TO THE SAMPLE PROJECT

COMPONENT’S PROPERTIES

Customizable component’s title and icon. Please refer to “Common properties” guide.

GUI

This component’s sample is made by using Graphic UI gateway.

Please refer to “Gateways / Protocols” chapter in order to get further info.

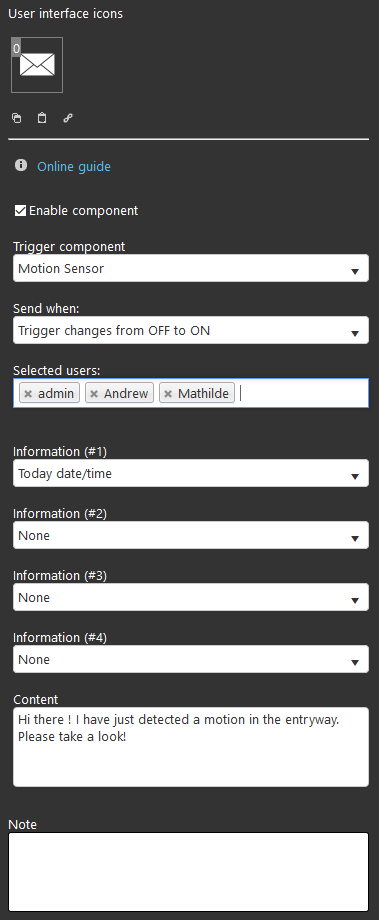

Enable component: checkbox which defines whether the function is enabled or disabled on the system.

Trigger component: Drop Down, Color info, Text infoSwitch, Lock, Pulse component that triggers the notification;

Send when:

Trigger changes from Off to On: SMS is sent only when the trigger goes to On;
Trigger changes from On to Off: SMS is sent only when the trigger goes to Off;
At any change of the trigger: SMS is sent anytime trigger goes to On and Off;

Send to: users list to whom the notification will be sent;
Selection is carried out by typing project’s users into the empty gap.

Further information can be added to the SMS content (up to 4 information):

Information (#1):  Drop Down, Info, Color info, Text infoSliderSwitch, Lock or Tuner component;

Information (#2): Drop Down, Info, Color info, Text infoSliderSwitch, Lock or Tuner component;

Information (#3): Drop Down, Info, Color info, Text infoSliderSwitch, Lock or Tuner component;

Information (#4): Drop Down, Info, Color info, Text infoSliderSwitch, Lock or Tuner component;

Content: text of the notification that will be sent when trigger changes will occur.
The above information set up will be automatically placed in the body of the notification.

Note: text field available for additional information on the component from the admin side.

HELP
Notification configuration can be easily carried out by using component’s drag&drop function. When setting components on Component’s parameters, you can use the drop-down menu, or you can drag and drop them from “My components” area to the component selection field.

Reminder before continuing:

  • Download and Install EVE Logic plugin to enable plugins (link);
  • After loading .eve project to the server, wait a couple of minutes for logics activation.

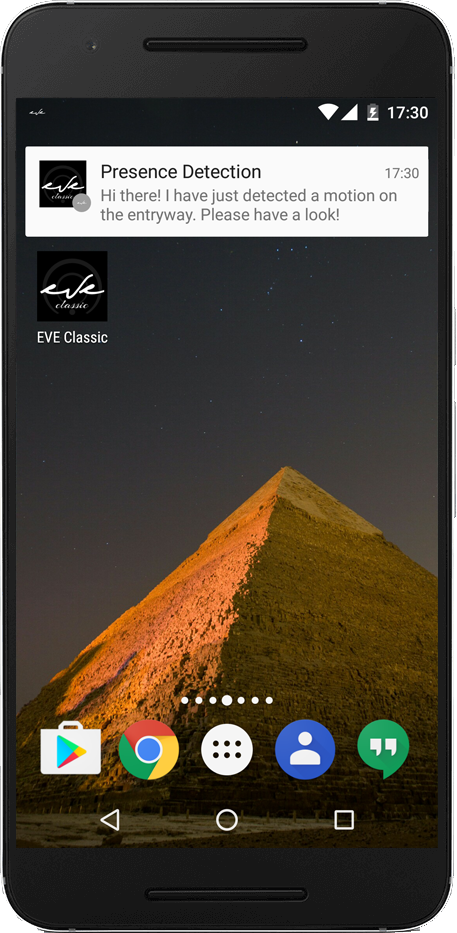

EVE notification on your phone
