Relative Value


Allows you to count a particular component for a period selected by the administrator in EVE Manager. At each time interval expiration, the count will be reset automatically.

COMPONENT’S PROPERTIES

GUI

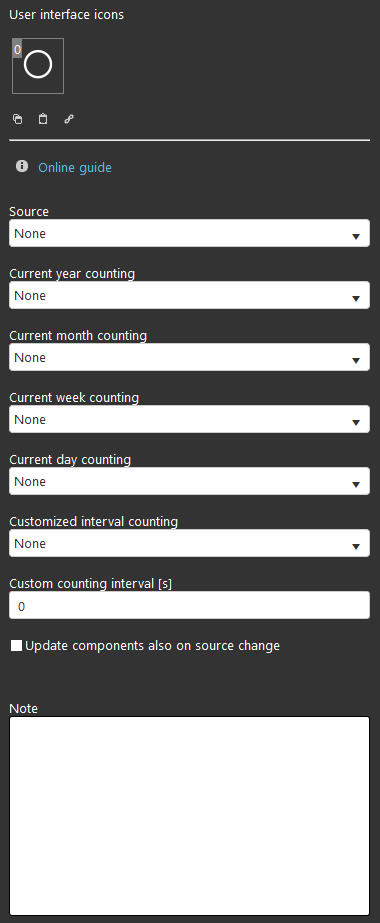

This component’s sample is made by using Graphic UI gateway.

Please refer to “Gateways / Protocols” chapter in order to get further info.

Source: select the component from which you want to detect the data;

Current year counting: select the Info component where the source component data is recorded annually;

Current month counting: select the Info component where the source component data is recorded monthly;

Current week counting: select the Info component where the source component data is recorded weekly;

Current day counting: select the Info component where the source component data is recorded daily;

Customized interval counting: select the Info component where the source component data is recorded with custom counting;

Custom counting interval [s]: text field where to enter a custom recording interval, in seconds;

Update components also on source change (check box): if checked, the Info component is updated every change of the source component;

Note: text field available for additional information on the component from the admin side.



Important. the selection fields do not necessarily have to be all filled.

Reminder before continuing:

  • Download and Install EVE Logic plugin to enable plugins (link);
  • After loading .eve project to the server, run EVE Remote app, log in and then wait a couple of minutes for logics activation.
