This component is an operator which allows processing the single signal to add delays or activate functions after verifying the stability of the same signal for a certain time. It gives the possibility to manage operations that can be performed even with scenarios. However, it is more convenient to control events in detail, distinguishing the ON/OFF timing.

Reminder before starting

FREE test

We provide you with a test project already configured in order to let you try on your own the plugin’s functionalities in just a few quick steps.

-> GO TO THE SAMPLE PROJECT

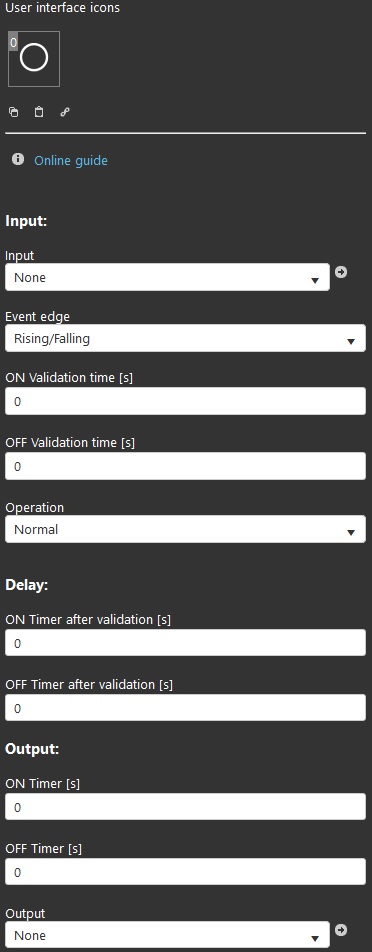

COMPONENT’S PROPERTIES

GUI

This component’s sample is made by using Graphic UI gateway.

Please refer to “Gateways / Protocols” chapter in order to get further info.

INPUT

Input: Select the Input switch component.

Event edge: Select whether the event is rising, falling, or both.

ON Validation time (seconds): Enter the time that must elapse so that the ON value of the input component both valid.

OFF Validation time (seconds): Enter the time that must elapse so that the OFF value of the input component both valid.

Operation: Select if the operation is carried out normally or if it is reversed.

DELAY

ON Time after validation (seconds): Enter the time that elapses after that the ON value of the input component has been validated.

OFF Time after validation (seconds): Enter the time that elapses after that the OFF value of the input component has been validated.

OUTPUT

Output: Select the Output switch component.

ON Timer (seconds): Enter how long the output component will have the ON value.

OFF Timer (seconds): Enter how long the output component will have the OFF value.

Output: Select the Output switch component.

Note: text field available for additional information on the component from the admin side.
