Sample project: Week Timer


The purpose of this example, which you can download here, is to show you how to use the “Week Timer” component in a project to schedule activities.

Preparing and loading the project in EVE Manager:

  • unzip the file;
  • open EVE Manager, go to the top left, File – Open – press “Ok” on the message that appears and select the file just decompressed;
  • Start the virtual machine or the Raspberry;
  • Download and Install the Logic by following this guide.

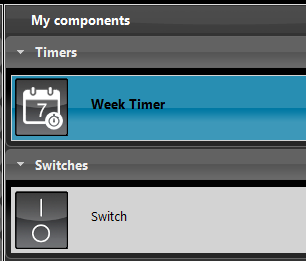

By accessing EVE Manager, after the project is loaded, the components that are used to configure the project are visible in the “My Components” area:

  • Week Timer
  • Switch

The Week Timer component is not to be inserted into the user interface, so we will only insert the switch and in this example we will schedule the turning on and off of lamp during the week.
All this is done directly in the EVE Remote Plus app after the project has been uploaded to the server by clicking on the top of EVE Manager on “Project” – Upload to server, here enter the IP address of the virtual machine or Raspberry, as user “admin” and as password “password”.

LOGIN ACCOUNT  user: admin  password: password

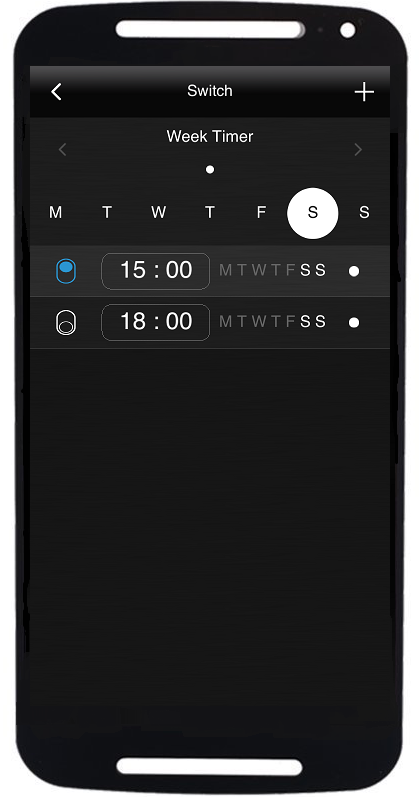

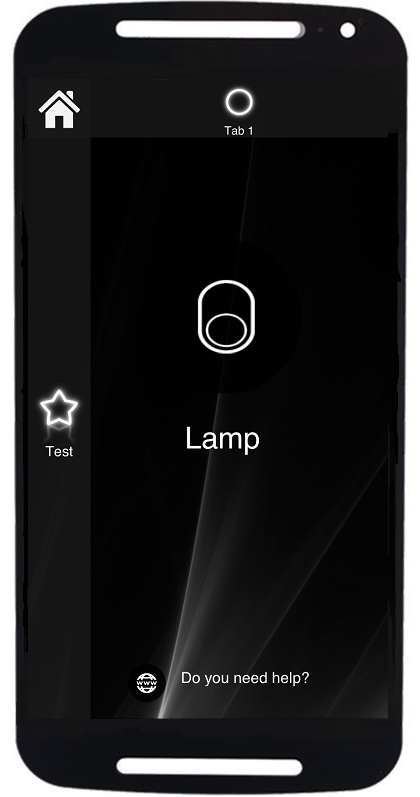

Once you have effected login at the app, you will find the interface with the switch and by accessing the Week Timer configuration mode you will find configured on Saturdays and Sundays the switching on at 3.00 pm and the switching off at 18.00 of the lamp.

For more information on how to access the Week Timer configuration mode, we recommend that you consult the component guide that you find in the Learning Centre.

This component is useful when there are operations that are repeated weekly and always occur at the same days and hours.
