Sample projects: Week Timer Calendar


The “Week Timer Calendar” component can be configured in a number of ways, so we have divided our project into multiple examples, from the simplest to the most complex.

First example project


The purpose of this example, which you can download here, is to show you how to use the “Week Timer Calendar” component in managing the Week Timer activation manually.

Specifically, we use the componente for the irrigation management where two Week Timers are configured:

  • week not rainy: activates the irrigation system every day of the week from 21:00 to 23:30;
  • week rainy: always leave the system deactivated.

Preparing and loading the project in EVE Manager:

  • unzip the file;
  • open EVE Manager, go to the top left, File – Open – press “Ok” on the message that appears and select the file just decompressed;
  • Start the virtual machine or the Raspberry;
  • Download and Install the Logic by following this guide.

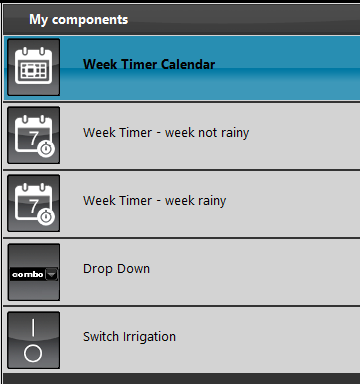

By accessing EVE Manager, after the project is loaded, the components that are used to configure the project are visible in the “My Components” area:

  • 1 Week Timer Calendar
  • 2 Week Timer
  • 1 Drop Down
  • 1 Switch

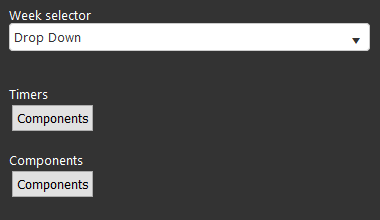

Place yourself in the “Week Timer Calendar” component to see its configuration:

  • In the first “Week selector” field, we have selected the drop down component as a selector, ie the one to allows that selects the week that you want to activate;
  • In the “timers” field, we selected the two Week Timers, through drag & drop from the “My Components” area. This function is used to select which Week Timers are part of this calendar;
  • Once the drop-down menu and timers are selected, the program combines the Week Timer and drop-down menu that are in the same location;
  • In the “Components” field, we have selected the Switch, through drag & drop from the “My Components” area, which in this example refers to irrigation. This function is used to select which components refer to this calendar.

After uploading the project to the server, clicking on the top of the EVE Manager on “Project” menu – Upload to server, here enter the IP address of the virtual machine or Raspberry, as the “admin” user and as password “password”, login to the EVE Remote Plus app.

LOGIN ACCOUNT  user: admin  password: password

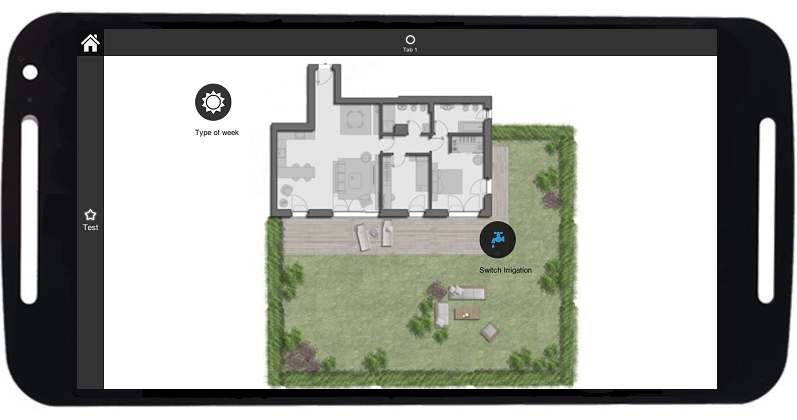

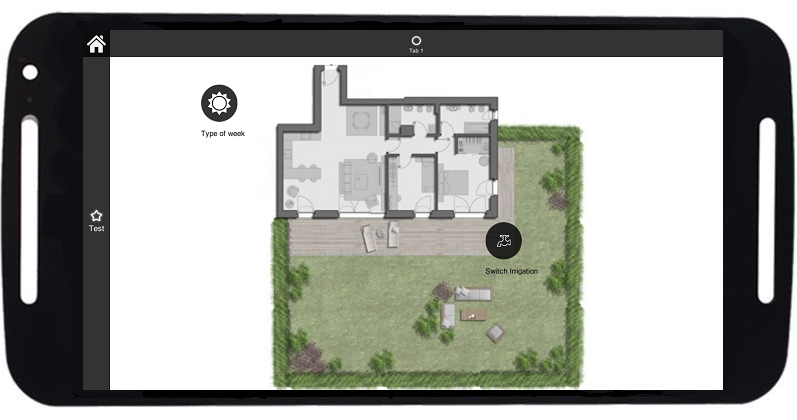

In this interface, pressing the drop down menu icon, represented by the “Sun” or “Rain” icons, we can choose whether to enable or disable programmed irrigation depending on whether the week was rainy or not.

To change the timetables of two Week Timer, just access timer setup mode. For more information on this procedure, please refer to the guide that you find on the previous page.

Second example project


The purpose of this example, which you can download here, is to show you how to use the “Week Timer Calendar” component in managing the Week Timers.

Specifically, we use the component to manage an outdoor lamp where three Week Timers are configured:

  • Winter: timer of the winter period that turns on the lamp every day from 5 pm to 11.30 pm;
  • Summer: timer of the summer period that turns on the lamp every day from 9 pm to 11.30 pm;
  • Mid season: Timer for intermediate periods that light the lamp every day from 6 pm to 11.30 pm;

Preparing and loading the project in EVE Manager:

  • unzip the file;
  • open EVE Manager, go to the top left, File – Open – press “Ok” on the message that appears and select the file just decompressed;
  • Start the virtual machine or the Raspberry;
  • Download and Install the Logic by following this guide.

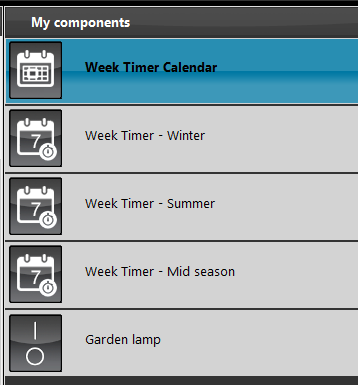

By accessing EVE Manager, after the project is loaded, the components that are used to configure the project are visible in the “My Components” area:

  • 1 Week Timer Calendar
  • 3 Week Timer
  • 1 Switch

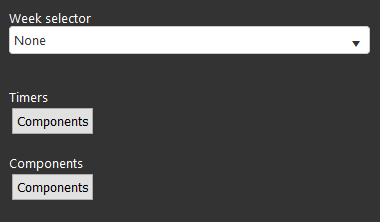

Place yourself in the “Week Timer Calendar” component to see its configuration:

  • In the “timers” field, we selected the two Week Timers, through drag & drop from the “My Components” area. This function is used to select which Week Timers are part of this calendar;
  • In the “Components” field we have selected the Switch, which in this example refers to the external lamp, through drag & drop from the “My Components” area. This function is used to select which components refer to this calendar.

After uploading the project to the server, clicking on the top of the EVE Manager on “Project” menu – Upload to server, here enter the IP address of the virtual machine or Raspberry, as the “admin” user and as password “password”, login to the EVE Remote Plus app.

LOGIN ACCOUNT  user: admin  password: password

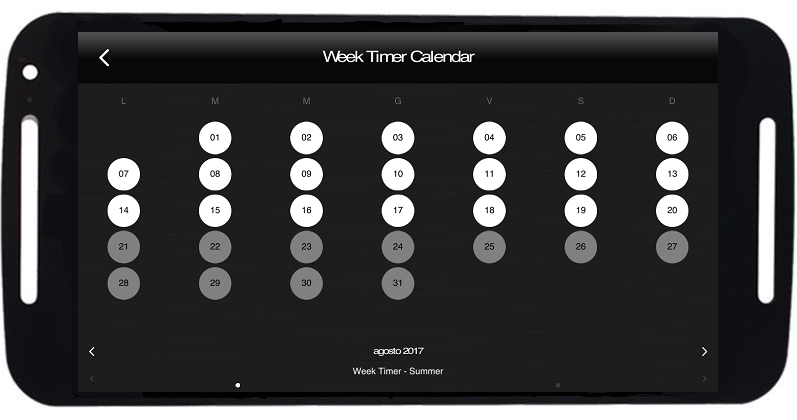

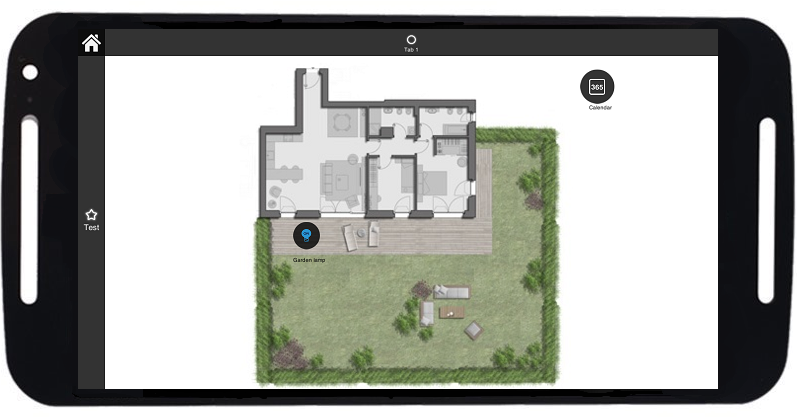

In this interface by clicking on the Week Timer Calendar component, you can select which days to run each Week Timer, except the one set as default in EVE Manager that will run on days not selected.

Third example project


The purpose of this example, which you can download here, is to show you how to handle multiple “Week Timer Calendar” components.

Specifically, we will have a Week Timer Calendar component to handle the lamp in the garden, as seen in the previous example, and another that manages the rest of the house’s devices represented by two roller shutters.

Preparing and loading the project in EVE Manager:

  • unzip the file;
  • open EVE Manager, go to the top left, File – Open – press “Ok” on the message that appears and select the file just decompressed;
  • Start the virtual machine or the Raspberry;
  • Download and Install the Logic by following this guide.

By accessing EVE Manager, after the project is loaded, the components that are used to configure the project are visible in the “My Components” area:

  • 1 Week Timer Calendar
  • 2 Week Timer
  • 2 Shutters

The Two Week Timers are used to set the default opening hours of the shutters and those for the holiday week.

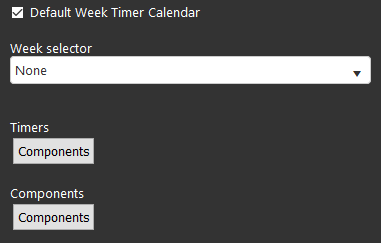

Place yourself in the “Week Timer Calendar” component to see its configuration:

  • The only configuration made here is to set the component as default by clicking on the “Default Week Timer Calendar” check box;
  • This setup allows you to set a Week Timer Calendar where you can enter all Week Timers in the project.

After uploading the project to the server, clicking on the top of the EVE Manager on “Project” menu – Upload to server, here enter the IP address of the virtual machine or Raspberry, as the “admin” user and as password “password”, login to the EVE Remote Plus app.

LOGIN ACCOUNT  user: admin  password: password

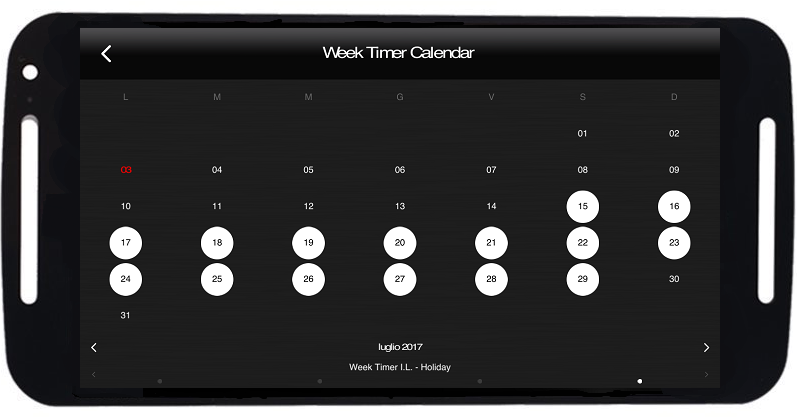

In this interface by clicking on the Week Timer Calendar components icons, you can select the days in which to run the various Week Timers set, except those set as default in EVE Manager that will run on days leave it free.

Fourth example project


In this last example, which you can download here, we will put together the first three projects that were subdivided to show you the different types of usage and configuration of the “Week Timer Calendar” component.

Preparing and loading the project in EVE Manager:

  • unzip the file;
  • open EVE Manager, go to the top left, File – Open – press “Ok” on the message that appears and select the file just decompressed;
  • Start the virtual machine or the Raspberry;
  • Download and Install the Logic by following this guide.

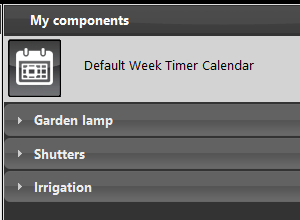

By accessing EVE Manager, after the project is uploaded, groups divided by project in the “My Components” section are visible.

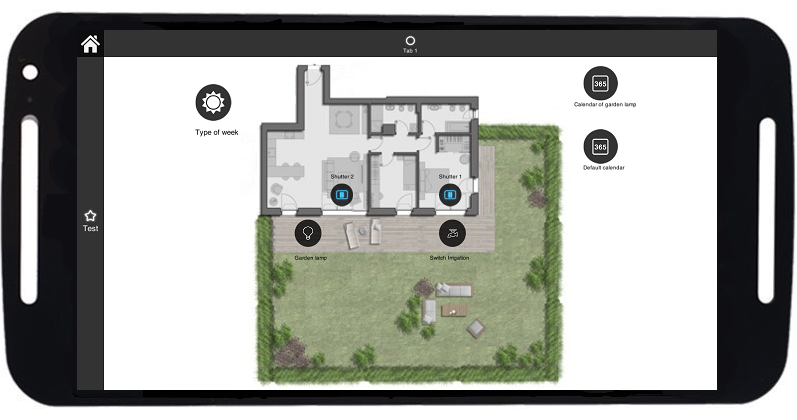

After uploading the project to the server, clicking on the top of the EVE Manager on “Project” menu – Upload to server, here enter the IP address of the virtual machine or Raspberry, as the “admin” user and as password “password”, login to the EVE Remote Plus app.

LOGIN ACCOUNT  user: admin  password: password

Now that there are more Week Timers, it is important, during their configuration, be careful to select the one that matches the component we are configuring.

We have to pay same attention when we go to select Week Timer execution days in calendars.
