This component allows you to select for each hour of the week whether to activate or deactivate a Switch component or a Scenario component.

COMPONENT’S PROPERTIES

Customizable component’s title and icon. Please refer to “Common properties” guide.

GUI

This component’s sample  is made by using Graphic UI gateway.

Please refer to “Gateways / Protocols” chapter in order to get further info.

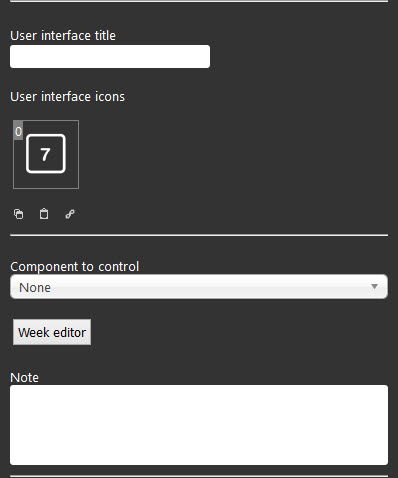

Component to control: Switch / Scenario component to set On / Off according to the week calendar;

Week editor: week calendar editor where to set weekly timers for the selected component above.

Week Calendar…

Note. Week Calendar is a component totally managed by the system integrator. This means the timer setting is totally managed on EVE Manager software, differently from Week Timer component managed by the end user directly on EVE Remote interface (please refer to Week Timer & Calendar plugin module).

Component to control:

Each Week Timer added to the project refers to a specific component.

It is possible to plan timer events for Switch components and Scenario components.

This means each Week Calendar refers to a specific component (switch or scenario) existing on the project.

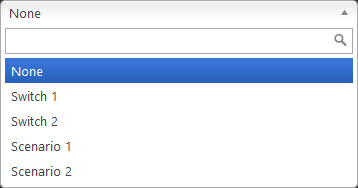

Select the component for which raise timer events you are going to set.

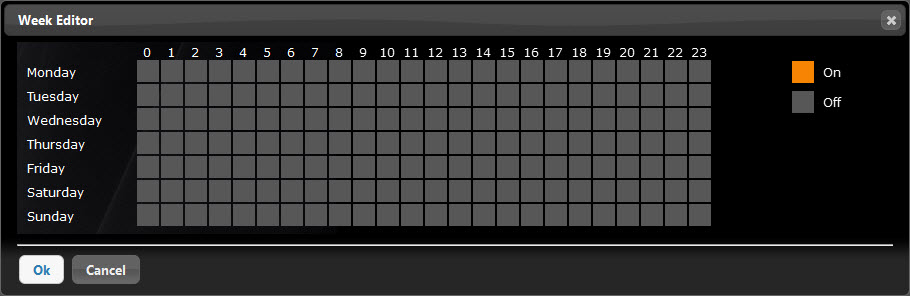

Week editor:

Week editor rappresent the timer plan for the selected component to control.

On the vertical axis of the graph are the days of the week (Mon – Sun).

On the orizontal axis of the graph are the hours of the day (0-24 h).

In order to set timer On, simply select the correspondant square which turns to be orange.

In order to set timer Off, simply select the correspondant square which turns to be grey.

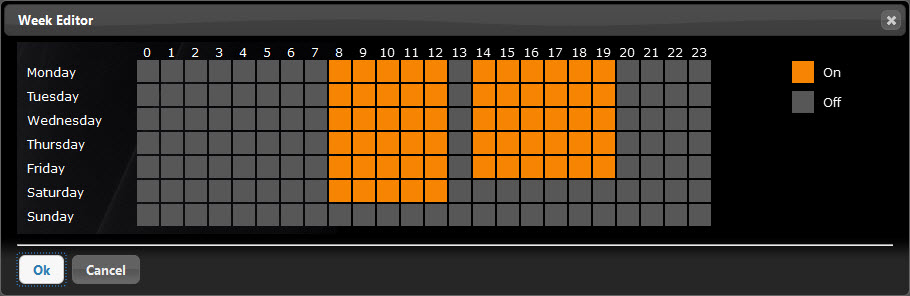

Example

Switch 1 turns On at 8am and turns Off at 12am every weekday from Monday to Friday and on Saturday.

Switch 1 turns On at 2pm and turns Off at 7pm every weekday from Monday to Friday.
