The cross functioning of these two components allows the user to set timers in a very flexible way. A typical case is the need to enable/disable a scenario every day of summer (or winter) offering the user the ability to define both times that the periods of activation of the scenario.

It is possible to add more than a Week Timer where each Week Timer can represent a specific period of the year (calendar). Week Timer Calendar, instead, is used to manage several Week Timer events. Week Timer Calendar is the component that allows to select the specific Week Timer and define the days that need to be considered directly by the end user on the interface.

Week Timers and Week Timer Calendars are very sophisticated components for this, once you read the explanation, we suggest that you go into the examples you find alongside their title to find out their many uses within a project.

These examples were divided by order of difficulty:

week-timerWeek Timer


Common use cases:

  • the user wants to raise any scenario (“Morning”, “Night”, …) on a specific time of the day;
  • the user wants to set timer events based on the specific day type (bank holiday, holidays, different workshifts, …);
  • the user wants to plan the daily and weekly timing activation of any component of the project.

IMPORTANT:

The video is referring to an old version of our app, to access to the timer configuration in the latest version of the software you have to keep pressed the HOME icon, when it starts blinking you can navigate on the user interface and select the component you want to change the timer events

How To (video):

Reminder before starting

FREE test

We provide you a test project already configured in order to let you try on your own the plugin’s functionalities in just few quick steps.

-> GO TO THE SAMPLE PROJECT



Week Timer is a very useful plugin that allows the end user to set timer events in relation to a specific type of week directly from EVE Remote interface relatively to all the switches of the project. It is possible to make use of one or more Week Timer. In fact, each Week Timer represents a specific type of week: for example you can consider just a type of week or define a new one for your week holiday. This is just an example but the use cases are countless.

Remember. In order to allow the user to manage the timer events function you need to add Week Timer (one or more) and Week Timer Calendar on EVE Manager components. You DO NOT have to add Week Timer component on the user interface, in fact this is an extra setting area relative to all the switches of the project.

COMPONENT’S PROPERTIES

Customizable component’s title and icon. Please refer to “Common properties” guide.

GUI

This component’s sample  is made by using Graphic UI gateway.

Please refer to “Gateways / Protocols” chapter in order to get further info.

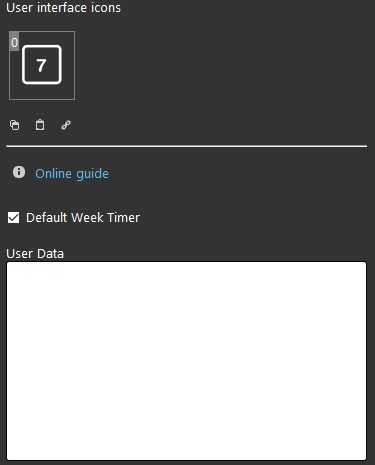

Default Week Timer: (check box) here you define whether this is the main Week Timer or not (*).

User Data:

(*) This option is important in case you decide to set more than a Week Timer. In fact, you define only one as the main one. This will be important during the visualization of the Week Timer Calendar where you select which days of the year have to be considered for the specific Week Timer. The timer events set on the default Week Timer are raised automatically.

Reminder before continuing:

  • Download and Install EVE Logic plugin to enable plugins (link);
  • After loading .eve project to the server, run EVE Remote app, log in and then wait a couple of minutes for logics activation.

eden-remoteEVE Remote Plus


Three different view mode possibilities: “CLASSIC”, “MODAL” and "HIDDEN". Learn more about the component's view modes.

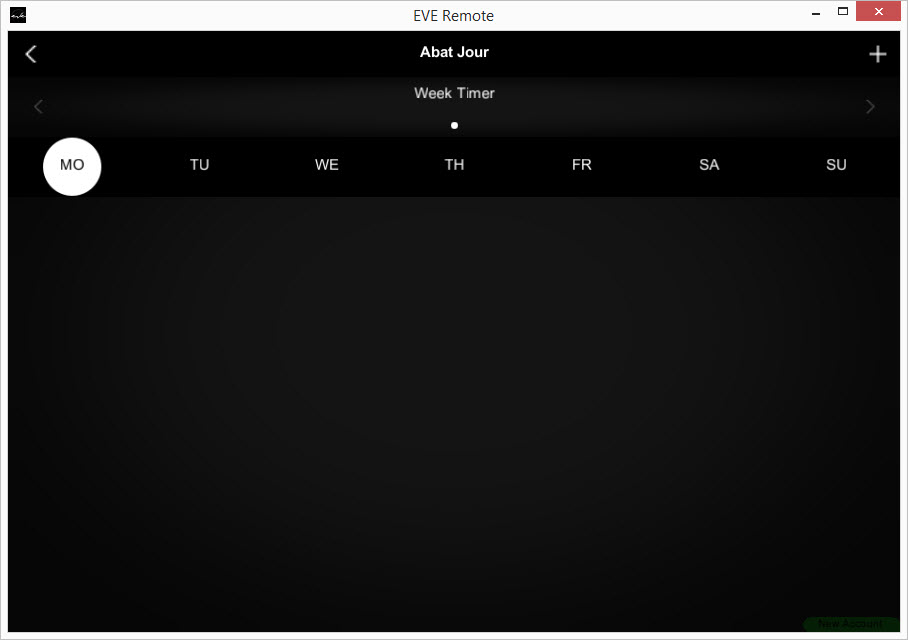

MAP VIEW MODE




On top of the Week Timer setting area is the title, the name of the selected component (ex. Abat Jour).

On right of the title is the icon to add events while on left there is the icon to go back to the user interface.

Then there is a scroll bar which define the Week Timer selection (only if more Week Timer are present).

Below a quick visualization of all the events set for the specific day of the selected Week Timer.

2015-10-05_16-51-51 –> “Add event” command;

2015-10-05_16-48-04 –> “Back to user interface” command.

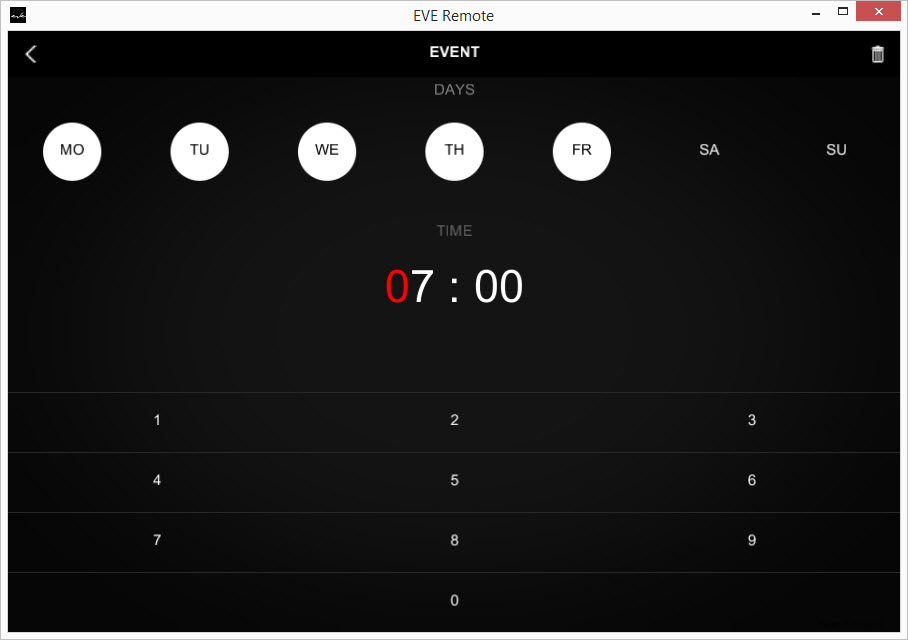

Adding events…

Note. Before adding a new timer event the user need to set the proper Week Timer (if more than one are present).

On top right of the event setting area is the icon to delete the event.

On top left of the event setting area is the icon to go back to the Week Timer setting area.

Then there is a selection bar which defines the days of the week you want the event to be raised.

Below the numerical tablet where the user need to enter the time of the event. Once finished, go back.

2015-10-05_16-56-17 –> “Delete event” command;

2015-10-05_16-48-04 –> “Back to user interface” command.

Editing events…

It is possible to edit each timer event:

  • On / Off: tap on the switch icon of the timer event to set it On or Off;
  • Day / Time: tap on the timer event row to open the setting area and edit days and hour of the event.
  • Enable / Disable: tap on the white spot on left of the timer event row to enable or disable the timer.

Note. You can edit the timer event as described above, but you can not edit the Week Timer selection. For this reason it is very important to pay attention to the Week Timer selection at the beginning before start adding each new timer event.

Events summary…

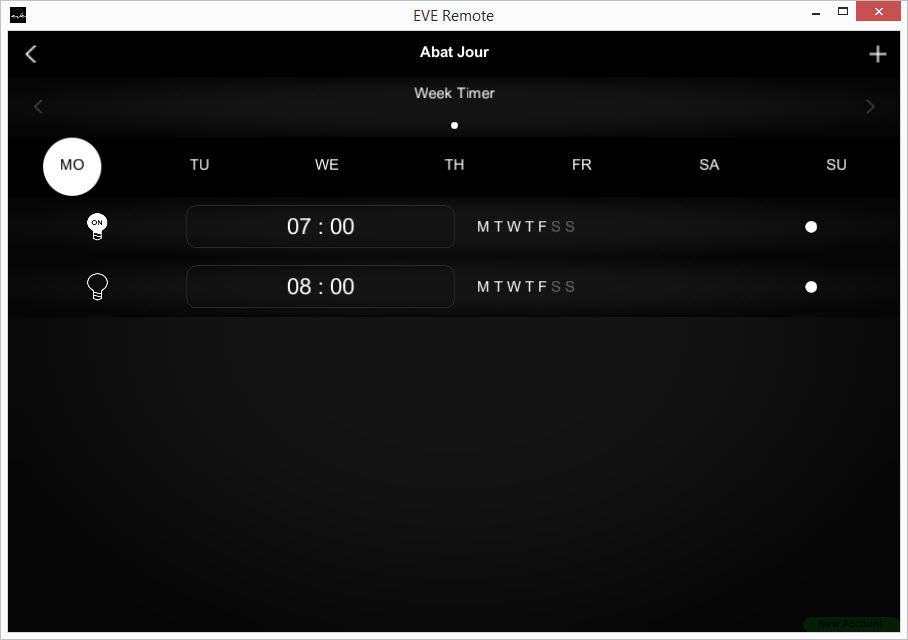

Example. Plan for the lighting of the abat jour:

Every weekday Monday to Friday the light turns On at 7am and turns Off at 8am.

Every Saturday the light turns On at 9am and turns Off at 10am. No timer events on Sunday.

Note. To end the Week Timer change mode, press the Home icon for a few seconds until it will stops blinking.

week-timer-calendarWeek Timer Calendar


Reminder before starting

FREE test

We provide you a test project already configured in order to let you try on your own the plugin’s functionalities in just few quick steps.

-> GO TO THE SAMPLE PROJECT



Week Timer Calendar is a tool used in presence of many Week Timer and allows the user to define which days are owned by each one directly from the interface.

Remember. In order to allow the user to manage the timer events function you need to add Week Timer (one or more) and Week Timer Calendar on EVE Manager components. You DO NOT have to add Week Timer component on the user interface, however in presence of more that a Week Timer, you DO need to add Week Timer Calendar component to the user interface.

COMPONENT’S PROPERTIES

Customizable component’s title and icon. Please refer to “Common properties” guide.

GUI

This component’s sample  is made by using Graphic UI gateway.

Please refer to “Gateways / Protocols” chapter in order to get further info.

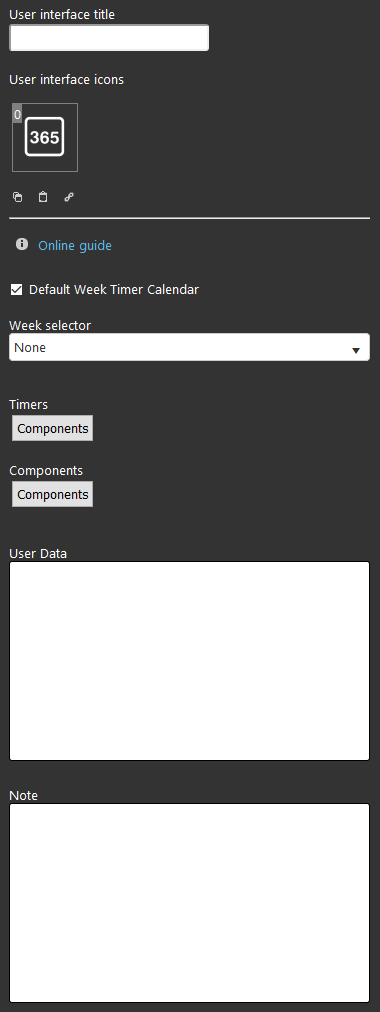

Check box: here you define whether this is the main Week Timer Calendar or not (*).

Week selector: You can select a Drop Down component that allows you to select the Week Timers you want to activate in a specific component.

Timers: you can select the Week Timer components to associate with this Calendar.

Components: you can select the components to associate with this Calendar.

User Data: text field to enter more information for the user.

Note: text field available for additional information on the component from the admin side.

(*) This option is important in case you decide to set more than a Week Timer Calendar. This option will be available in a near future and further information will be provided when available.

Reminder before continuing:

  • Download and Install EVE Logic plugin to enable plugins (link);
  • After loading .eve project to the server, run EVE Remote app, log in and then wait a couple of minutes for logics activation.

MAP VIEW MODE




The explanation that follows is just one of the possible configurations that you can apply to the Week Timer Calendar component, to find more, go to the section of the examples that you find alongside the component title.

Two Week Timer…

In presence of more than a Week Timer it is necessary to define which one is the default one. This will be important during the visualization of the Week Timer Calendar where you select which days have to be considered for the specific Week Timer. The timer events set on the default Week Timer are raised automatically.

Events summary…

Example. Plan for the lighting of the abat jour:

Plan for the Typical week (set as the default Week Timer):

Every weekday Monday to Friday the light turns On at 7am and turns Off at 8am.

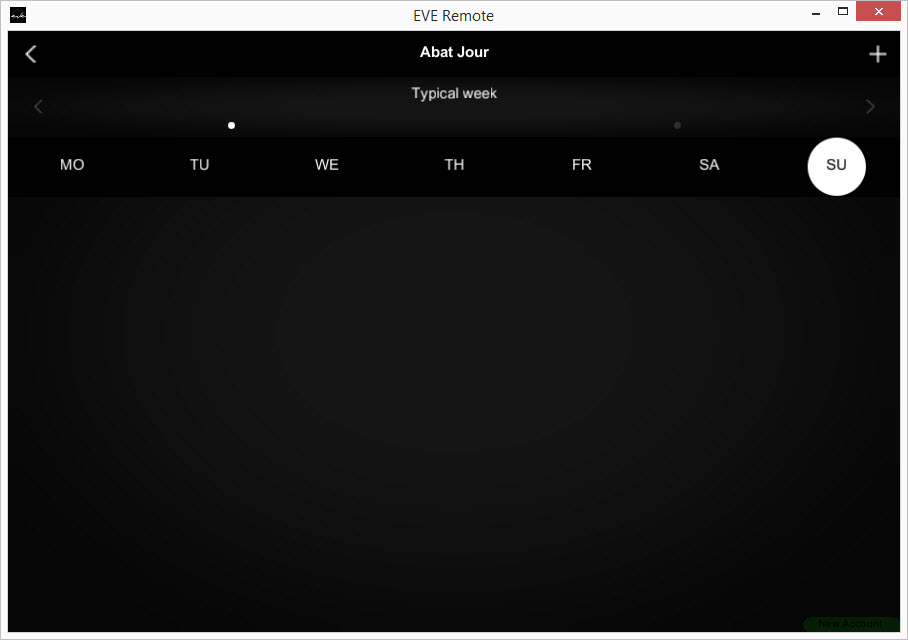

Every Saturday the light turns On at 9am and turns Off at 10am. No timer events on Sunday.

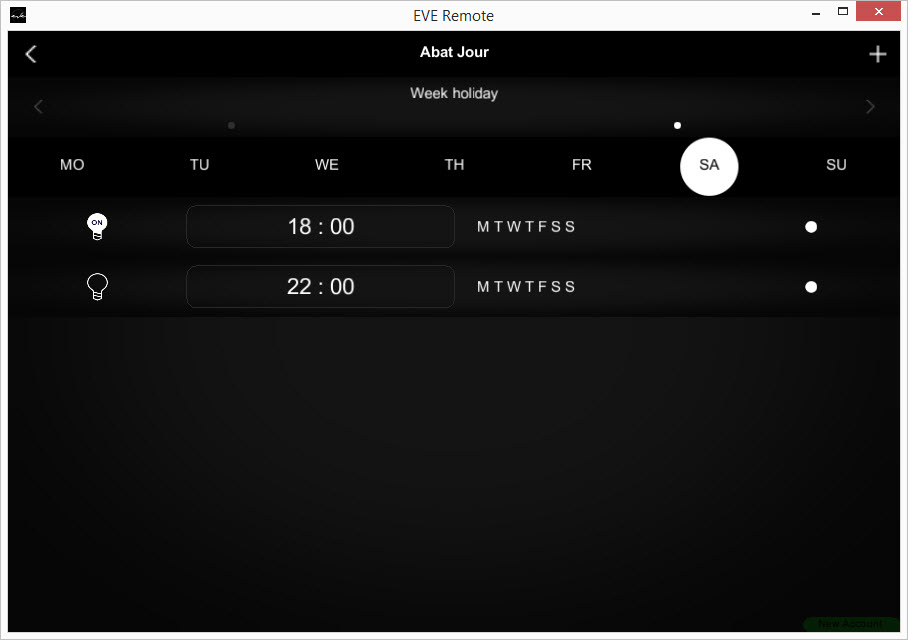

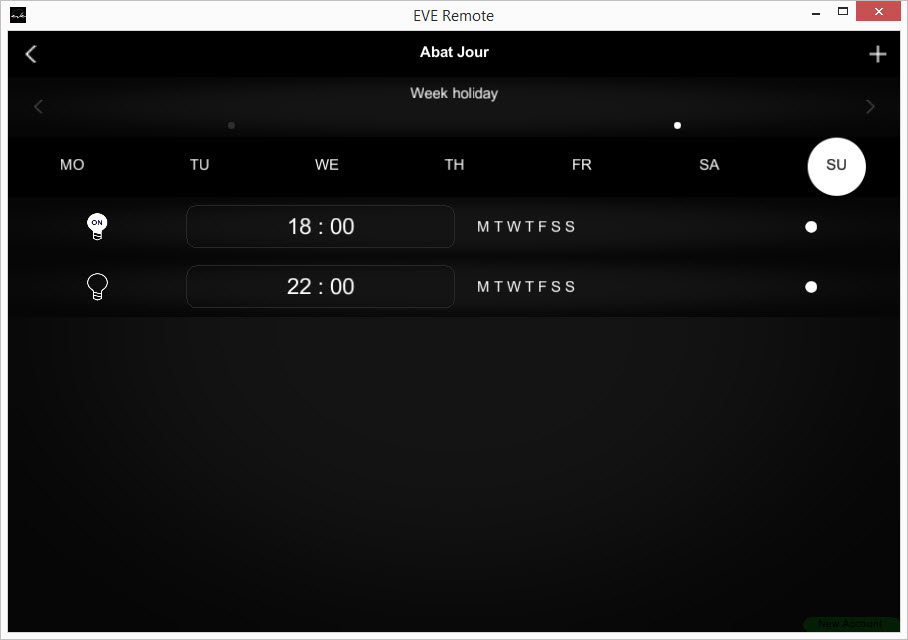

Plan for the week holiday (NOT set as the default Week Timer):

Every day,  Monday to Sunday the light turns On at 6 pm and turns Off at 10 pm.

Week Timer Calendar…

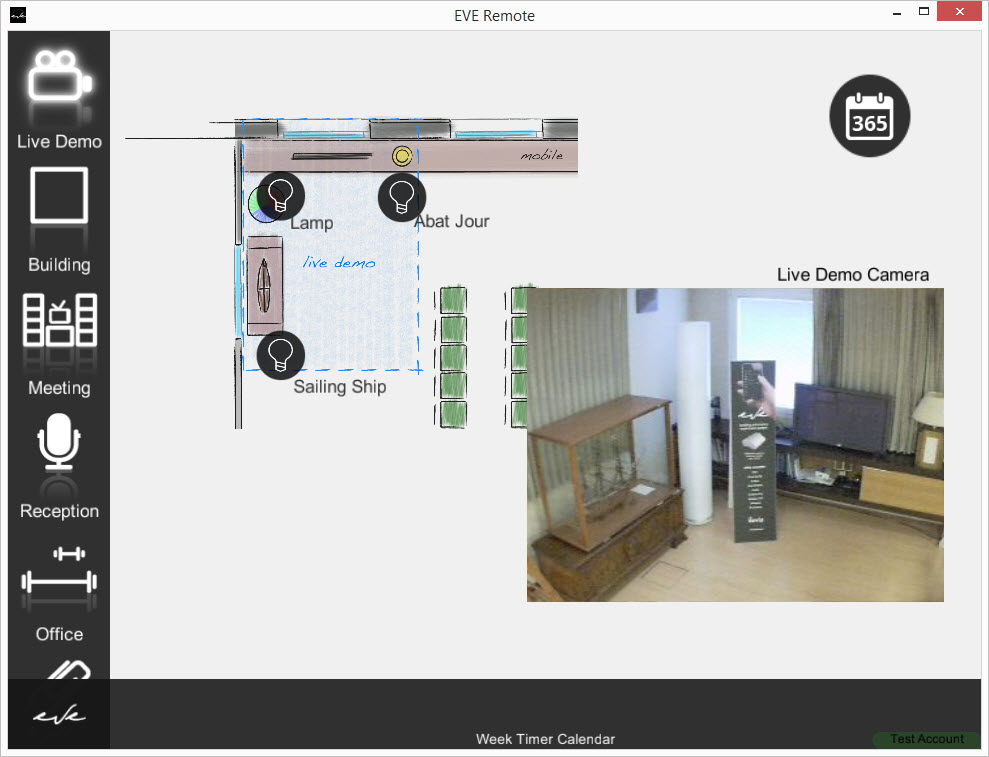

In order to open Week Timer Calendar setting area it is necessary to simply tap on the component icon added to to the interface.

Week Timer Calendar component DOES need to be added on the user interface.

In order to open Week Timer Calendar setting area just tap on the proper icon.

2015-10-05_16-50-09 –> Week Timer Calendar icon (editable)

Typical week (automatically selected)

On top of the Week Timer Calendar widget is the title bar (Ex. Week Timer Calendar).

On left there is the icon to go back to the user interface while on right is an extra menu (not yet available).

In the central area is the calendar while below there is a scroll bar which define the Week Timer selection.

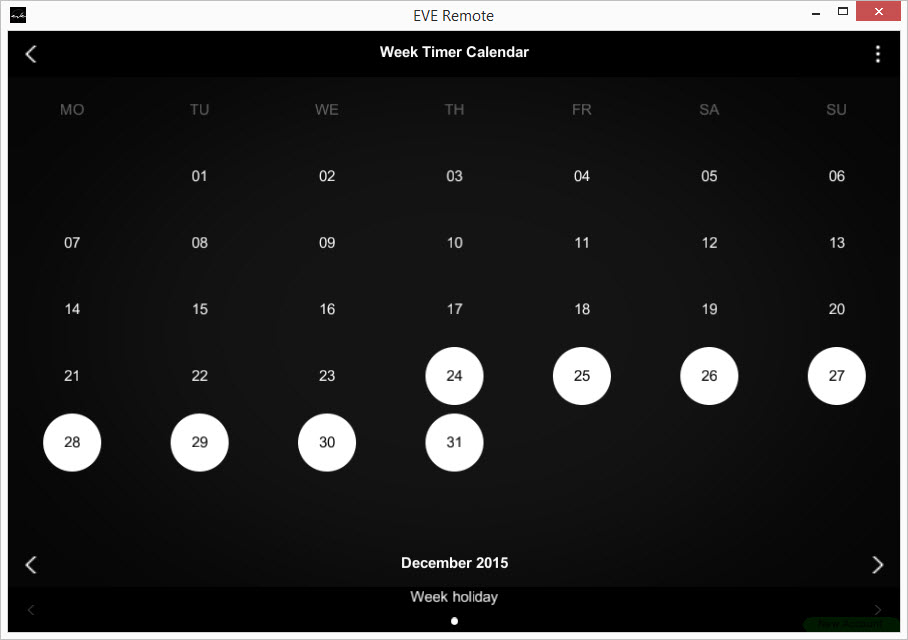

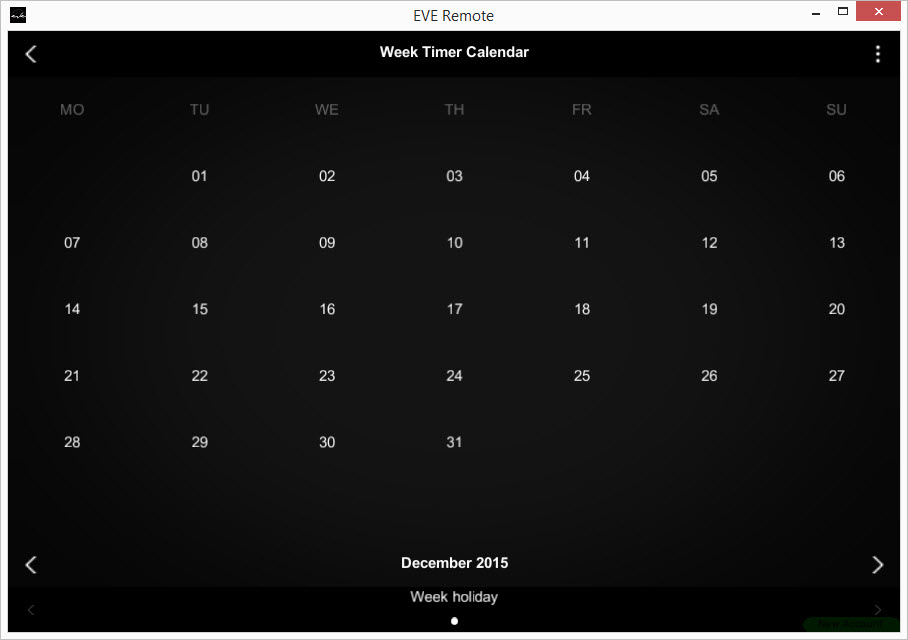

Week Holiday selection

Firstly, the user need to select the proper Week Timer (if more than one are present).

Once done, the user need to select which days have to be considered for the specific Week Timer.

Note. The timer events set on the default Week Timer are raised automatically.
